Adjustment, boot lid lock

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the boot lid.
  2. Loosen the boot lid lock plate bolts until the boot lid can be moved somewhat.

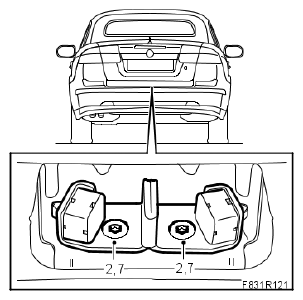

    Fig 1: Illustration For Step 2, 7
    G05063243Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Move the lock plate to the center position and the highest position. Do not tighten the bolts completely.
  4. Close the boot lid slowly and carefully. The boot lid should close easily without tension.
  5. Check that the size of the gap between the boot lid and side panel is correct.
  6. Open the boot lid.
  7. Loosen the boot lid lock plate bolts. Move the lock plate in the desired direction and tighten the bolts.
  8. Repeat until the rear of the boot lid is optimally adjusted and the boot lid can be opened and closed with ease.
