Adjustment, lateral, backward, forward

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the soft top and leave the soft top cover open.

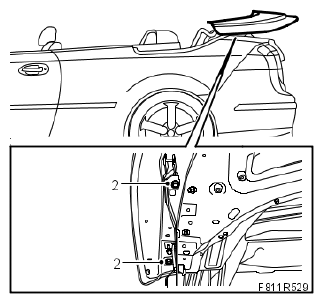

    Fig 1: Identifying Soft Top Cover Bolts And Screws
    G05063246Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Loosen the soft top cover bolts and the screws for the guide pin attachment until the soft top cover can be adjusted with the hinge. The rearmost bolt has a graduation to facilitate adjustment.
  3. Close the soft top cover slowly and carefully.
  4. Align the soft top cover by adjusting it until the gap is the same all round.
  5. Open the soft top cover.
  6. Tighten the soft top cover bolts and the screws for the guide pin attachment.
  7. Close the soft top cover and check the adjustment.
