Checking the side window

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the side window against the door window. The distance between the rear edge of the side window sealing molding and the rear edge of the door window must be 23±1 mm. The distance should be the same all along the length.

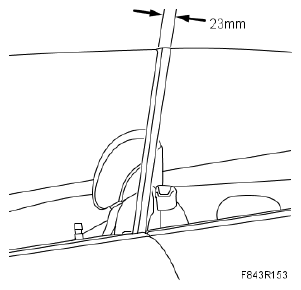

    Fig 1: Identifying Distance Between Rear Edge Of Side Window Sealing Molding And Rear Edge Of Door Window
    G05063266Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. The surface of the side window should exactly align with the surface of the door window. The upper edge of the side window should also align with the upper edge of the door window.
