Checking the position of the door window, forward/backward

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the soft top fully.
  2. Shut the windows.
  3. The front edge of the door window must run precisely and freely against the lip of the seal when the door is closed (A  ).

    When the door is closed the lip of the seal must close around the edge (B  ).

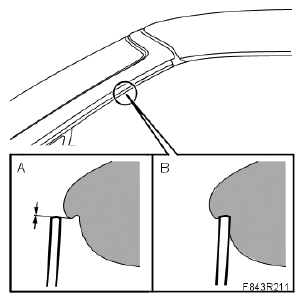

    Fig 1: Position Of Door Window
    G05063259Courtesy of SAAB-SCANIA OF AMERICA, INC.
