Checking the depth of the door window travel

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. When the door is closed the lip of the seal must close around the edge.

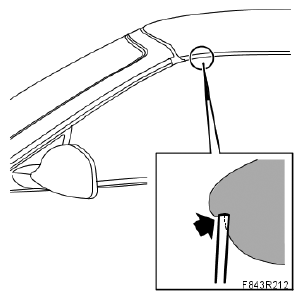

    Fig 1: Identifying Depth Of Door Window Travel
    G05063262Courtesy of SAAB-SCANIA OF AMERICA, INC.
