Adjustment of the side window, uppermost position

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Seat cushion, rear seat, CV, Backrest, rear seat, CV. See SEAT CUSHION, BACKREST, CV , BACKREST, REAR SEAT, CV
  2. Remove Rear side trim, CV and fold down the water barrier. See REAR SIDE TRIM, CV .
  3. Loosen the nut on the arm mounting.

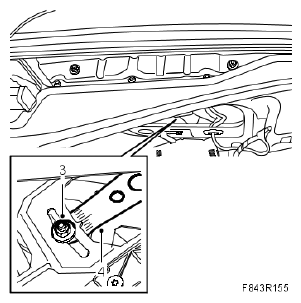

    Fig 1: Illustration For Step 3-4
    G05063269Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the side window by moving the arm on the window lift mechanism. Tighten the nut.
    NOTE: The marks on the arm are equivalent to a 1 mm vertical movement of the side window.
  5. Fold back the water barrier and fit REAR SIDE TRIM, CV
  6. Check the fit and operation of the window.
  7. Fit backrest, and seat cushion. See SEAT CUSHION, BACKREST, CV , BACKREST, REAR SEAT, CV .
  8. Cars with pinch protection:  Perform Calibration of pinch protection. See CALIBRATION OF PINCH PROTECTION .
