Adjustment of the side window inwards / outwards

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Seat cushion, rear seat, CV, Backrest, rear seat, CV and Rear side trim, CV. See SEAT CUSHION, BACKREST, CV , BACKREST, REAR SEAT, CV and REAR SIDE TRIM, CV .
  2. Remove the rubber plug
  3. Loosen the nut.

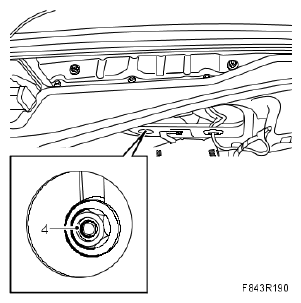

    Fig 1: Identifying Adjusting Screw
    G05063268Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Adjust the side window by turning the adjusting screw. Tighten the adjusting screw nut.
  5. Fit the rubber plug
  6. Fit Rear side trim, backrest, and seat cushion. See SEAT CUSHION, BACKREST, CV , BACKREST, REAR SEAT, CV and REAR SIDE TRIM, CV .
  7. Check the fit and operation of the window.
  8. Cars with pinch protection:  Perform Calibration of pinch protection. See CALIBRATION OF PINCH PROTECTION .
