Adjustment of the side window forwards / backwards

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shut the windows fully.
  2. Remove Seat cushion, rear seat, CV, Backrest, rear seat, CV and Rear side trim, CV. See SEAT CUSHION, BACKREST, CV , BACKREST, REAR SEAT, CV and REAR SIDE TRIM, CV .
  3. Remove the upper insulation and the rubber plug.
  4. Shut the door.
  5. Loosen the two upper nuts on the window lift mounting and the nut on the lower adjusting screw.

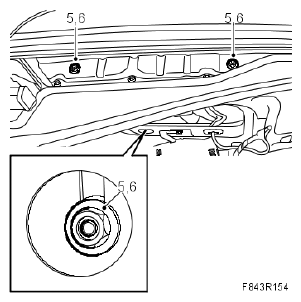

    Fig 1: Illustration For Step 5-6
    G05063267Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Adjust the side window by moving the complete window lift with window. Tighten the nuts.
  7. Check once more the position of the side window relative to the door window.
  8. Fit the rubber plug and the insulation.
  9. Fit Rear side trim, backrest, and seat cushion. See SEAT CUSHION, BACKREST, CV , BACKREST, REAR SEAT, CV and REAR SIDE TRIM, CV .
  10. Check the fit and operation of the window.
  11. Cars with pinch protection:  Perform Calibration of pinch protection. See CALIBRATION OF PINCH PROTECTION .
