Adjustment of the door window, uppermost position

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the window fully.
  2. Remove the plastic cover and the rubber plug.

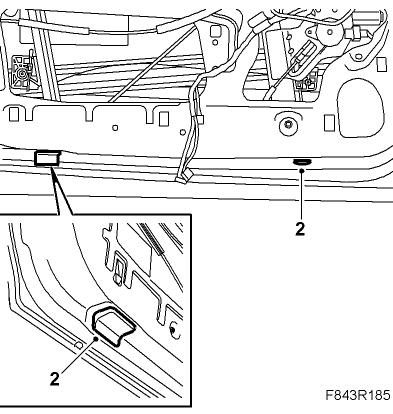

    Fig 1: Identifying Plastic Cover And Rubber Plug
    G05063257Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Turn the two adjustment screws.
    IMPORTANT: The two set screws must be turned the same amount in the same direction. Otherwise, the window can start to rise at the front or back after some time of use.

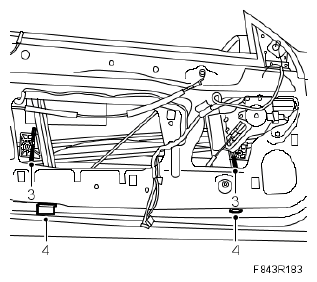

    Fig 2: Illustration For Step 3-4
    G05566360Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the plastic cover and the rubber plug
  5. Check that the door mirror base is correctly adjusted in relation to the door window.
  6. Check the fit and operation of the window.
  7. Cars with pinch protection:  Perform Programming of the pinch protection. See CALIBRATION OF PINCH PROTECTION .
