Adjustment of the door window inwards / outwards

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. When the door is closed the lip of the seal must close around the edge (B  ).
  2. Remove Door trim, CV.
  3. Unscrew the retaining bolt (A  ) and unscrew the adjustment screw (B)and adjust the window.

    The basic setting for the adjustment screw is so that half of the hole is visible.

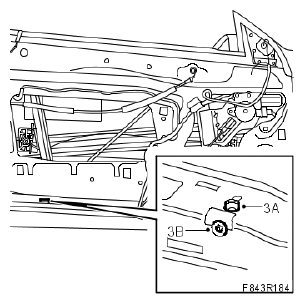

    Fig 1: Identifying Retaining Bolt And Adjustment Screw
    G05063263Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the door trim.
  5. Test the window and check the fit. Also check that the door mirror base is correctly adjusted in relation to the door window.
  6. Cars with pinch protection:  Perform Programming of the pinch protection. See CALIBRATION OF PINCH PROTECTION .
