Adjustment of the door window forwards /backwards

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the window until about 10 cm of the window is visible.

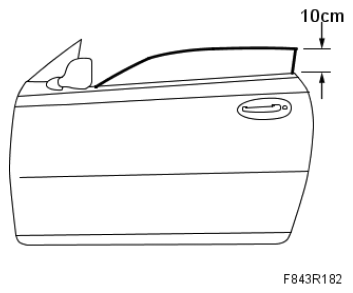

    Fig 1: Open Window Until About 10 cm Of The Window Is Visible
    G05063260Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove The door trim, CV and fold down the water barrier.
  3. Before adjustment is started the door mirror base screws must be unscrewed.
  4. Loosen the two retaining bolts. Adjust the window backwards or forwards.

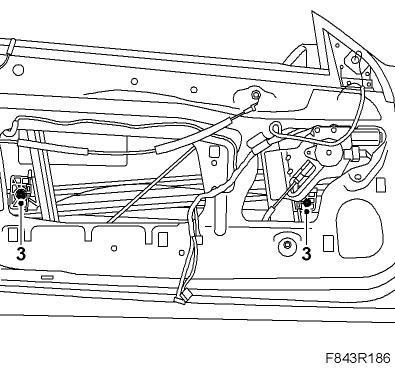

    Fig 2: Loosen Two Retaining Bolts And Adjust Window Backwards Or Forwards
    G05063261Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Tighten the retaining bolts.
  6. Adjust the door mirror base and tighten the screws. Check that the door mirror base is correctly adjusted in relation to the door window.
  7. Fold back the water barrier and fit Door trim, CV.
  8. Check the fit and operation of the window.
  9. Cars with pinch protection:  Perform Calibration of pinch protection. See CALIBRATION OF PINCH PROTECTION .
