Adjustment and checking of position sensor, first bow locked

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the boot lid and take out the emergency operation tool.
  2. Open the soft top and leave the soft top cover open.
  3. Remove the cover plate clip.

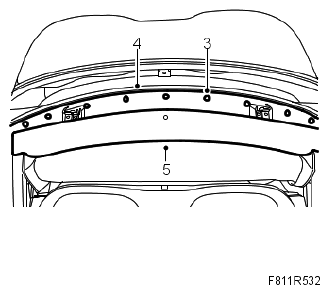

    Fig 1: Illustration For Step 3-5
    G05063584Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the cover plate.
  5. Remove the front cover by pulling it backwards.
  6. Lock the lock hooks by using the emergency opening tool. The lock hooks must be in fully locked position.
    Fig 2: Locking Lock Hooks With Emergency Opening Tool
    G05063585Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Check the measurement between the sensor and the drive control using a feeler gauge. The measurement must be 0.7 mm. Adjust if necessary as follows:
    1. 7.A. Unscrew the sensor's screw.
    2. 7.B. Use a feeler gauge to set the correct measurement between the sensor and the drive control. The measurement must be 0.7 mm.
      Fig 3: Identifying Sensor Screw And Drive Control
      G05566697Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Fit the front cover.

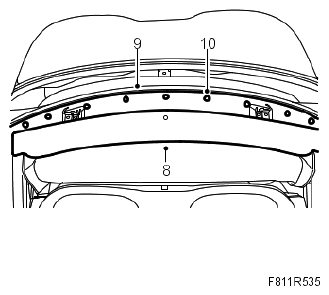

    Fig 4: Illustration For Step 8-10
    G05063587Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fit the cover plate.
  10. Fit the cover plate clip.
