Soft top sequences, opening the soft top, sensor inputs

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The illustrations and the hydraulic circuit diagram describe the movements of the soft top during raising and retracting. The tables describe the status of the position sensors with respect to each movement sequence. The outputs are marked in italics  and the inputs are underlined in the table headings. For changes of status, the read values are marked in bold.

Supervision time. Each of the movements (soft top, bow and cover) has a maximum allowed time (supervision time). STC controls each of the movements so that none of them exceed their respective supervision times. If the time is exceeded, the hydraulic system will immediately switch to stop mode. Automatic operation can be restarted by releasing the button "Close soft top" or "Open soft top" and then pressing the relevant button again.

The diagnostic tool can be used to read the status of each position sensor.

Description of position sensor status:

DESCRIPTION OF POSITION SENSOR STATUS

On Active input
Off Input inactive
On/Off Input in transition mode
  1. Status of position sensors prior to activation when the soft top is closed.
    POSITION SENSOR WITH STATUS

    Position sensor Status
    First bow ready to be locked On
    First bow locked On
    Soft top cover locked left On
    Soft top cover locked right On
    Soft top cover up Off
    Sixth bow up Off
    Sixth bow locked left On
    Sixth bow locked right On
    Soft top storage down On
    Main cylinder up On
    Main cylinder down Off

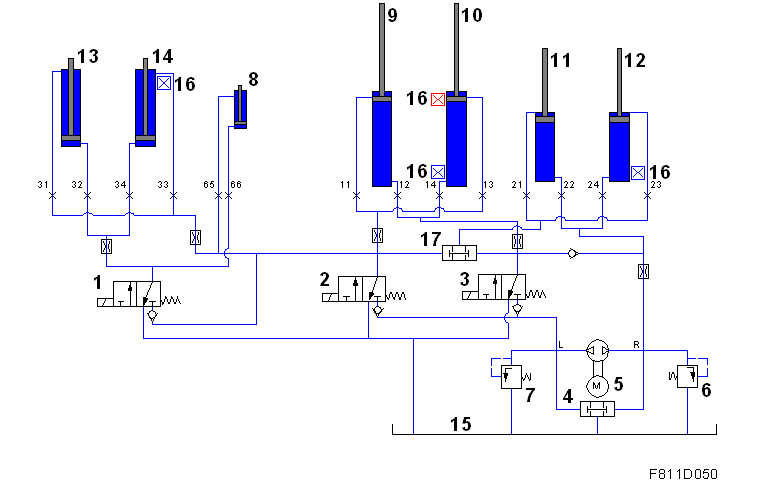

    Fig 1: Position Sensor - Circuit Diagram
    G05566818Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Step 1, unlocking and opening of sixth bow.

    When activating the soft top button, the control module performs the following:

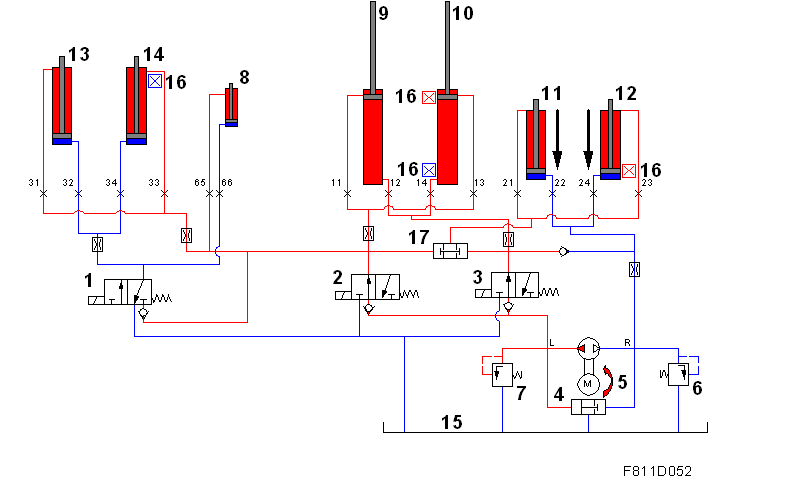

    Fig 2: Status For Unlocking And Opening Of Sixth Bow
    G05063709Courtesy of SAAB-SCANIA OF AMERICA, INC.
    POSITION SENSOR WITH STATUS

    Position sensor Status 1a Status 1b Status 1c
    Pump left, solenoid valve 2 and 3 (raise bow) until Sixth bow locked, right/left is "Off". Supervision time is 4 sec. Pump left, solenoid valve 2 and 3 (raise bow) until switch Sixth bow up "On".
    Supervision time is 4 sec.    		 Pump left, solenoid valve 2 and 3 (raise bow) until soft top storage down, switch "Off".
    Supervision time is 2 sec.
    First bow ready to be locked On On On
    First bow locked On On On
    Soft top cover locked left On On On
    Soft top cover locked right On On On
    Soft top cover up Off Off Off
    Sixth bow up Off On  On
    Sixth bow locked left Off  Off Off
    Sixth bow locked right Off  Off Off
    Soft top storage down On On Off
    Main cylinder up On On On
    Main cylinder down Off Off Off

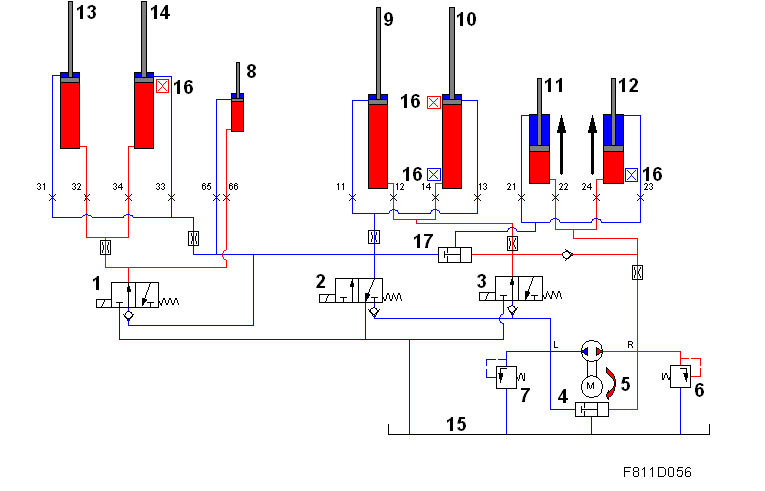

    Fig 3: Functions Diagram - Unlocking And Opening Of Sixth Bow
    G05566806Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Step 2, releasing first bow and opening soft top cover.
    Fig 4: Status For Releasing First Bow And Opening Soft Top Cover
    G05566821Courtesy of SAAB-SCANIA OF AMERICA, INC.
    POSITION SENSOR WITH STATUS

    Position sensor Status 2a Status 2b
    Pump left, solenoid valve 1, 2 and 3 (raise soft top/lock front catch) until First bow ready to be locked and First bow locked is "Off" and Soft top cover locked, left/right is "Off"
    Monitoring time is 10 sec. + 4 sec.    		 Pump left, solenoid valve 1, 2 and 3 (raise soft top/release front catch) until switch Soft top cover raised is "On"
    Supervision time is 10 sec.
    First bow ready to be locked Off  Off
    First bow locked Off  Off
    Soft top cover locked left Off  Off
    Soft top cover locked right Off  Off
    Soft top cover up Off On
    Sixth bow up On On
    Sixth bow locked left Off Off
    Sixth bow locked right Off Off
    Soft top storage down Off Off
    Main cylinder up On On
    Main cylinder down Off Off

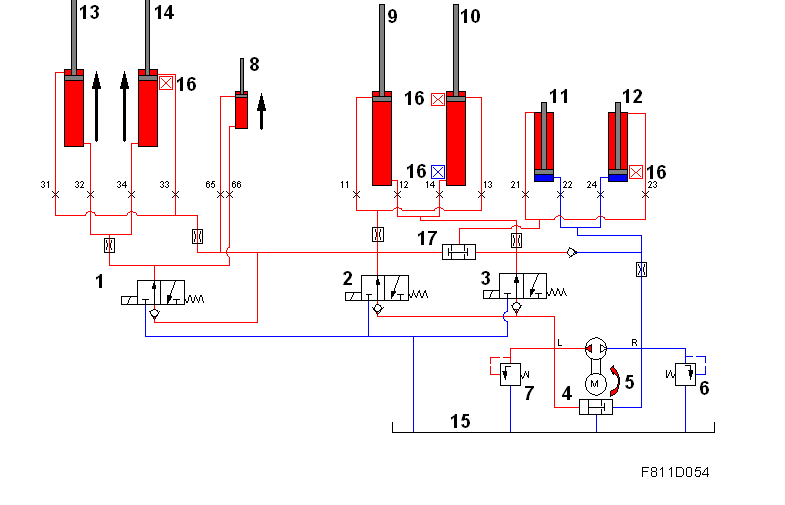

    Fig 5: Functions Diagram - Releasing First Bow And Opening Soft Top Cover
    G05566807Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Step 3, sixth bow, intermediate position.
    Fig 6: Status For Sixth Bow, Intermediate Position
    G05063713Courtesy of SAAB-SCANIA OF AMERICA, INC.
    POSITION SENSOR WITH STATUS

    Position sensor Status
    Pump right, solenoid valve 1 and 3 (lower bow) until switch "Sixth bow raised" is "Off"
    Supervision time is 3 sec.
    First bow ready to be locked Off
    First bow locked Off
    Soft top cover locked left Off
    Soft top cover locked right Off
    Soft top cover up On
    Sixth bow up Off
    Sixth bow locked left Off
    Sixth bow locked right Off
    Soft top storage down Off
    Main cylinder up On
    Main cylinder down Off
    Fig 7: Functions Diagram - Sixth Bow, Intermediate Position
    G05566808Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Step 4, lowering the soft top.
    Fig 8: Status For Lowering Soft Top
    G05063715Courtesy of SAAB-SCANIA OF AMERICA, INC.
    POSITION SENSOR WITH STATUS

    Position sensor Status
    Pump left, solenoid valve 1 and 2 (lower soft top) until switch Hydraulic cylinder down is "On"
    Supervision time is 10 sec.
    First bow ready to be locked Off
    First bow locked Off
    Soft top cover locked left Off
    Soft top cover locked right Off
    Soft top cover up On
    Sixth bow up On (4b)
    Sixth bow locked left Off/On
    Sixth bow locked right Off/On
    Soft top storage down Off
    Main cylinder up Off (4a)
    Main cylinder down On (4b)

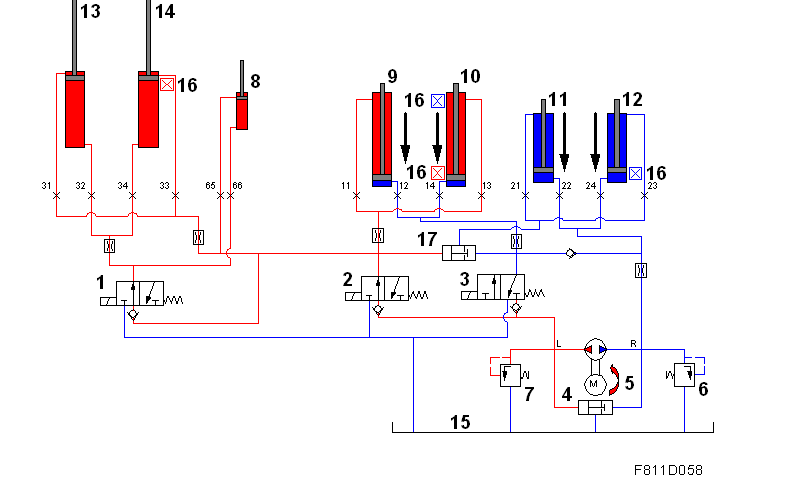

    Fig 9: Functions Diagram - Lowering Soft Top
    G05566809Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Step 5, locking the soft top cover.
    Fig 10: Status For Locking Soft Top Cover
    G05063717Courtesy of SAAB-SCANIA OF AMERICA, INC.
    POSITION SENSOR WITH STATUS

    Position sensor Status 5a Status 5b
    Pump left and solenoid valve 2 (lower soft top/lock front catch) until Soft top cover raised is "Off"
    Supervision time is 4 sec.    		 Pump left and solenoid valve 2 (lower soft top/lock front catch) until Soft top cover locked left/right is "On".
    Supervision time is 10 sec.
    First bow ready to be locked Off Off
    First bow locked On  On
    Soft top cover locked left Off On
    Soft top cover locked right Off On
    Soft top cover up Off  Off
    Sixth bow up On On
    Sixth bow locked left Off/On On/Off
    Sixth bow locked right Off/On On/Off
    Soft top storage down Off Off
    Main cylinder up Off Off
    Main cylinder down On On
    Fig 11: Functions Diagram - Locking Soft Top Cover
    G05566810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Status of position sensors prior to activation when the soft top is open.
    POSITION SENSOR WITH STATUS

    Position sensor Status
    End of cycle "Lower soft top" (soft top fully open)
    First bow ready to be locked Off
    First bow locked On
    Soft top cover locked left On
    Soft top cover locked right On
    Soft top cover up Off
    Sixth bow up On
    Sixth bow locked left Off/On
    Sixth bow locked right On/Off
    Soft top storage down Off
    Main cylinder up Off
    Main cylinder down On

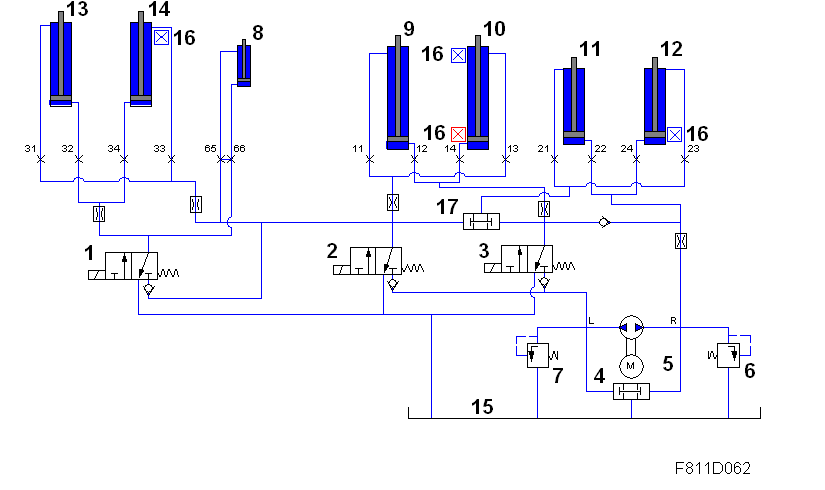

    Fig 12: Functions Diagram - Position Sensors Prior To Activation When Soft Top Is Open
    G05566830Courtesy of SAAB-SCANIA OF AMERICA, INC.
