Motor, hydraulic pump, soft top (646): Connection
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR PIN DESCRIPTION
| Pin No. | Signal type | Description |
|---|---|---|
| 1 | Voltage supply/Ground depending on the direction of rotation | The STC control module reverses the output polarity to change the motor direction. |
| 2 | Voltage supply/Ground depending on the direction of rotation | The STC control module reverses the output polarity to change the motor direction. |
The STC control module reverses the output polarity to change the motor direction.

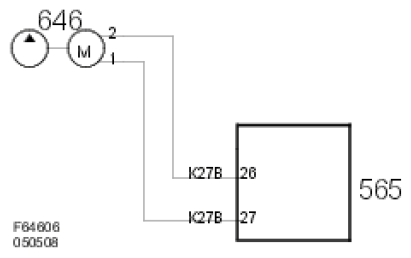

Diagram
