Section 49 (Convertible Top)
>>
Component Locator
>>
Switch panel (737a)
Switch panel (737a)
WARNING:
This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
on the dashboard panel next to the main instrument unit

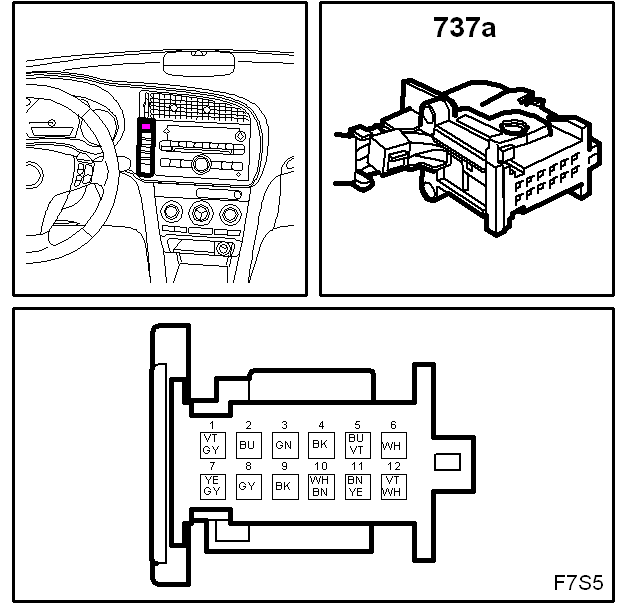

Fig 1: Identifying Switch Panel (737A)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
