Solenoid valve 2, soft top (647b)

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in the hydraulic unit by the RH rear wheel housing (blue connector)

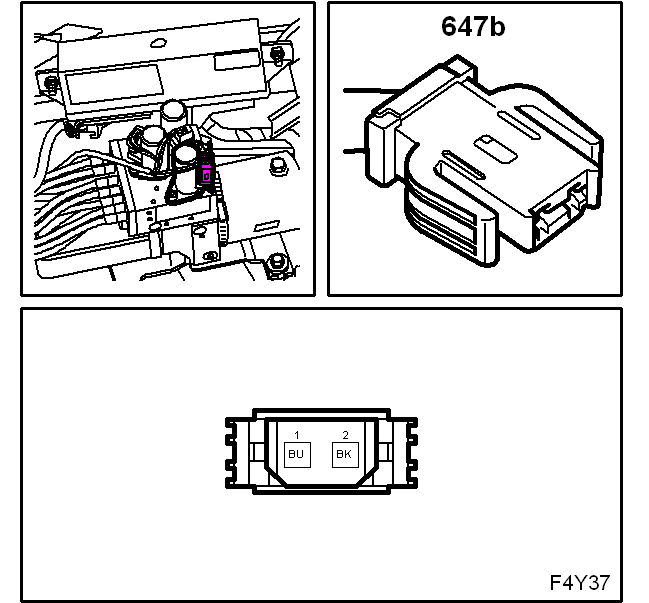

Fig 1: Identifying Solenoid Valve 2, Soft Top (647B)
G05063813Courtesy of SAAB-SCANIA OF AMERICA, INC.
