Position sensor, soft top lowered (577o): Location
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
component:
on the RH hydraulic cylinder of the soft top cover
connector:
black connector by the RH drive mechanism of the soft top bag

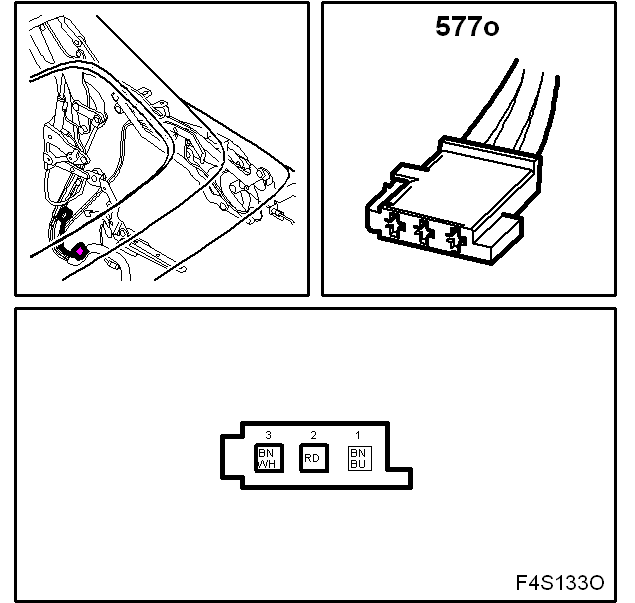

Fig 1: Identifying Position Sensor, Soft Top Lowered (577O)
