Position sensor, sixth bow locked, RH (578RH)

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  on the RH side of the sixth bow

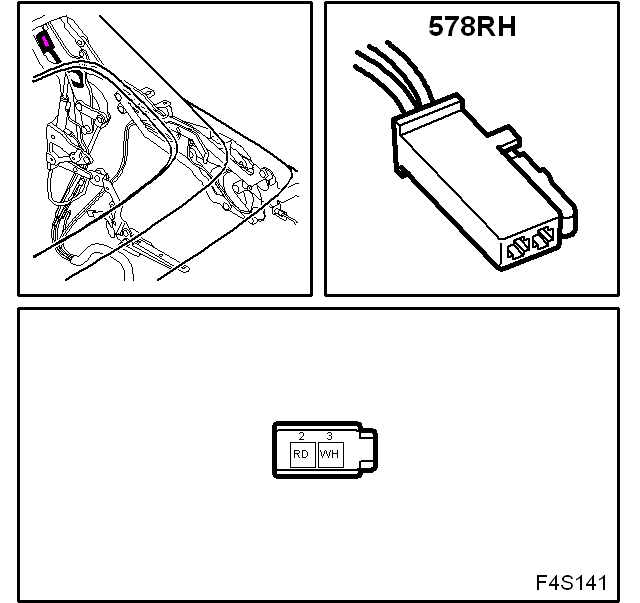

Fig 1: Identifying Position Sensor, Sixth Bow Locked, RH (578RH)
G05063809Courtesy of SAAB-SCANIA OF AMERICA, INC.
