Position sensor, first bow ready to lock (561)

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in the LH lock on the windscreen frame

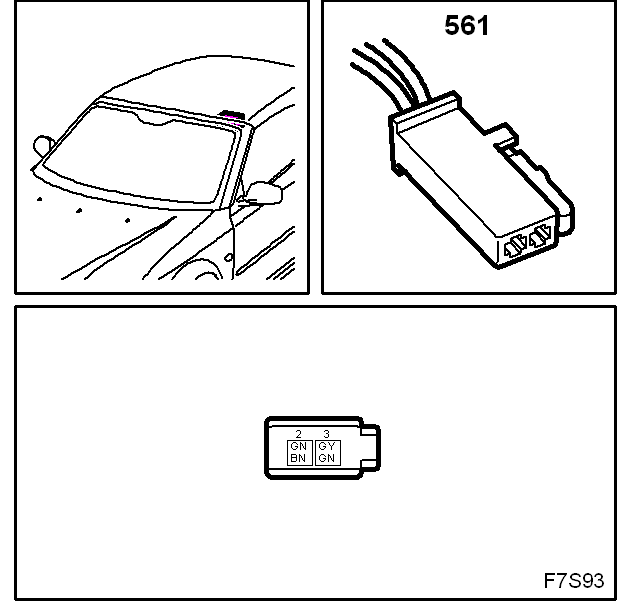

Fig 1: Identifying Position Sensor, First Bow Ready To Lock
G05572848Courtesy of SAAB-SCANIA OF AMERICA, INC.
