Motor, hydraulic pump, soft top (646)

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  in the hydraulic unit by the RH rear wheel housing

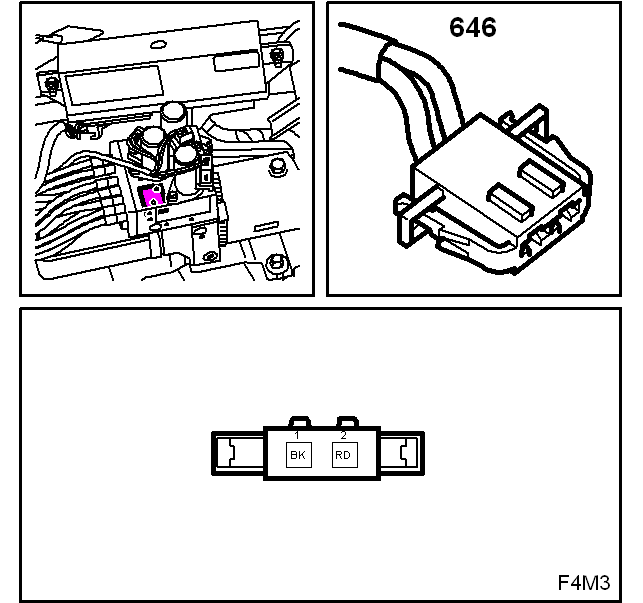

Fig 1: Identifying Motor, Hydraulic Pump, Soft Top (646)
G05063811Courtesy of SAAB-SCANIA OF AMERICA, INC.
