Connected components

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTED COMPONENTS

	Via Crimp J201 , main wiring harness CV
115	Heating element, rear window
317	Switch, soft top
565	Control module STC
737a	Switch panel

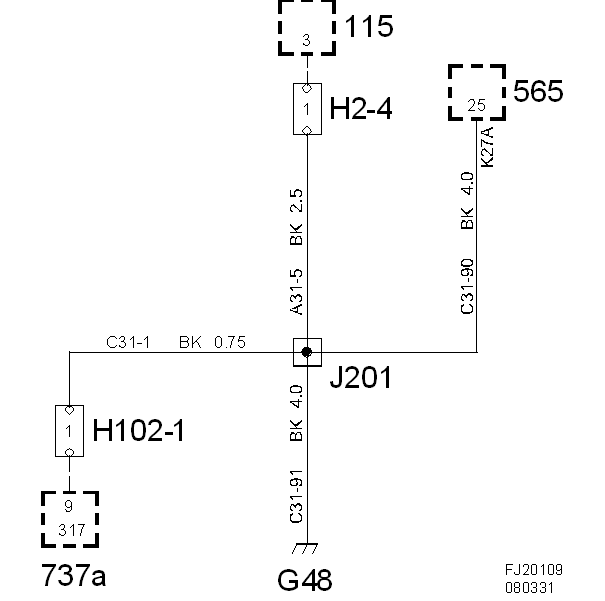

Fig 1: Grounding Point G48 (CV) - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
