Connected components
WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

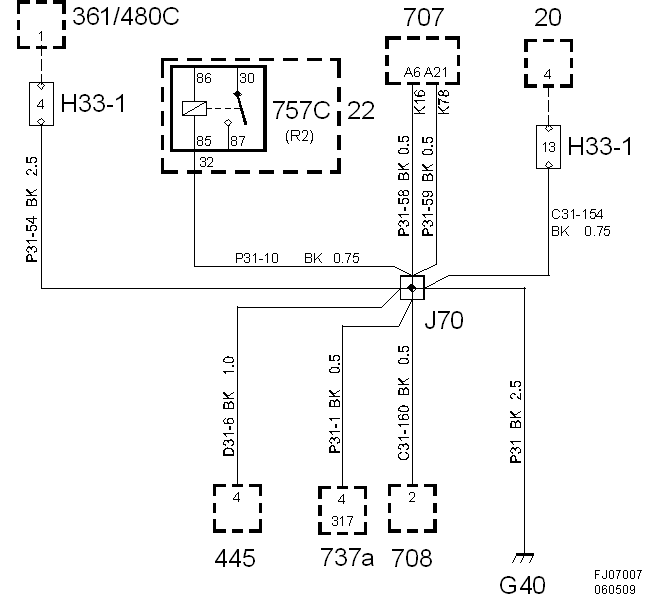

CONNECTED COMPONENTS
| Via crimp connection J70 , instrument harness | |
| 20 | Ignition switch unit |
| 361 | Lamp, 12 V socket illumination |
| 445 | Data link connector, 16-pin, CARB |
| 480C | 12 V socket, cabin |
| 707 | Body control module, BCM |
| 708 | Unit, steering column lock |
| 737a | Switch panel |
| 757C | Relay, +15, IPEC |
