Fuse 5, rear electrical center 701, maxi-fuse: Notes

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

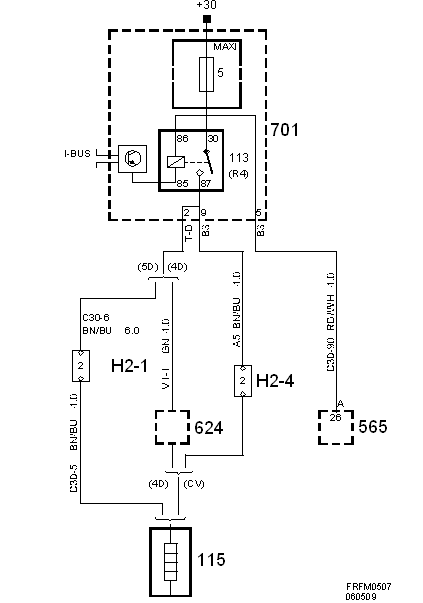

Fig 1: Rear Electrical Centre 701, Maxi-Fuse (Fuse 5) - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
