Crimp connection J70, instrument harness: Location

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

LHD:  Approx. 190 mm from branching of light switch unit to column integration module

RHD:  Approx. 150 mm from branching of grounding point G40 to grounding point G41

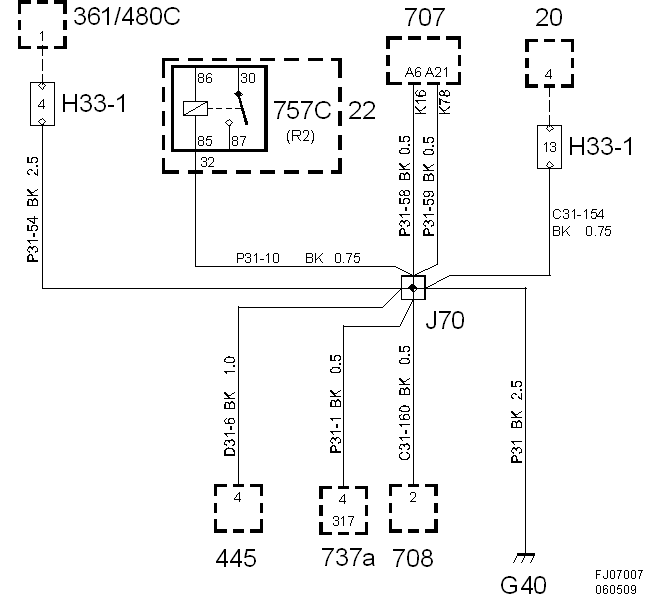

Fig 1: Crimp Connection J70 (Instrument Harness) - Circuit Diagram
G05566946Courtesy of SAAB-SCANIA OF AMERICA, INC.
