Crimp connection J68, instrument harness: Location

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

LHD:  Approx. 120 mm from branching of column integration module to grounding point G41

RHD:  Approx. 40 mm from branching of switch panel (737a) to grounding point G41

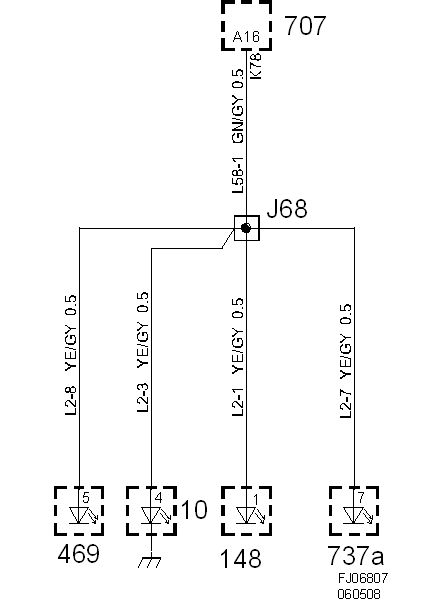

Fig 1: Crimp Connection J68 (Instrument Harness) - Circuit Diagram
G05566945Courtesy of SAAB-SCANIA OF AMERICA, INC.
