Crimp connection J175, soft top harness: Notes

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 50 mm from branching point soft top storage position sensor towards the main cylinder

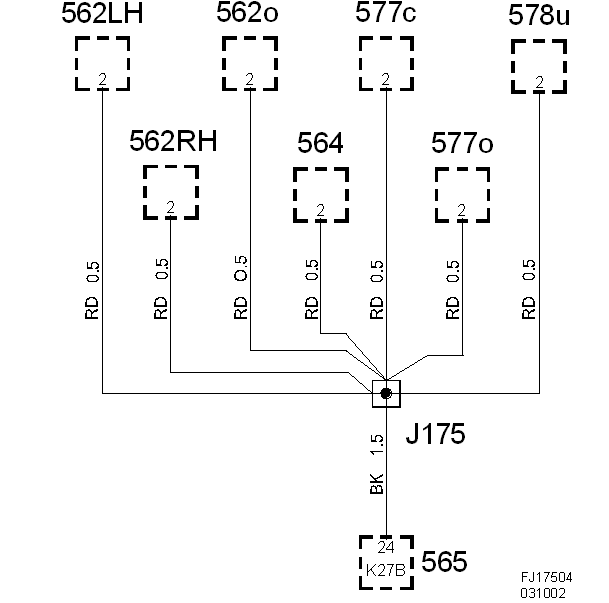

Fig 1: Crimp Connection J175 (Soft Top Harness) - Circuit Diagram
G05566948Courtesy of SAAB-SCANIA OF AMERICA, INC.
