Crimp J201, main wiring harness CV: Notes

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 130 mm from branching point grounding point G48 towards connector H10-7

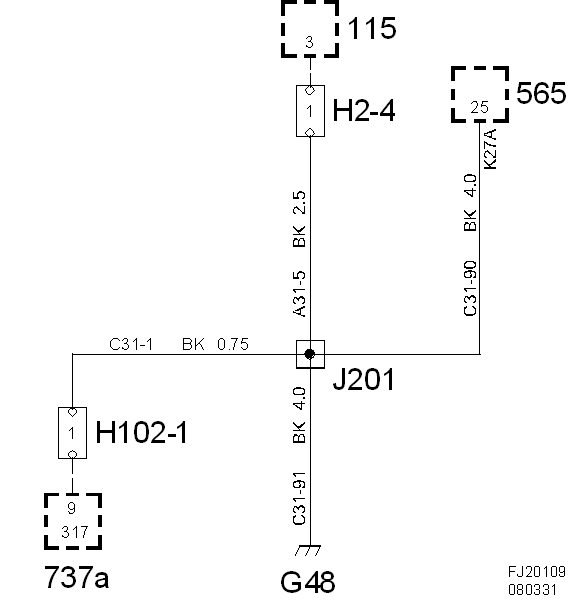

Fig 1: Crimp J201 (Main Wiring Harness CV) - Circuit Diagram
G05566949Courtesy of SAAB-SCANIA OF AMERICA, INC.
