Crimp J174, soft top wiring harness: Notes

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 150 mm from solenoid valve 1

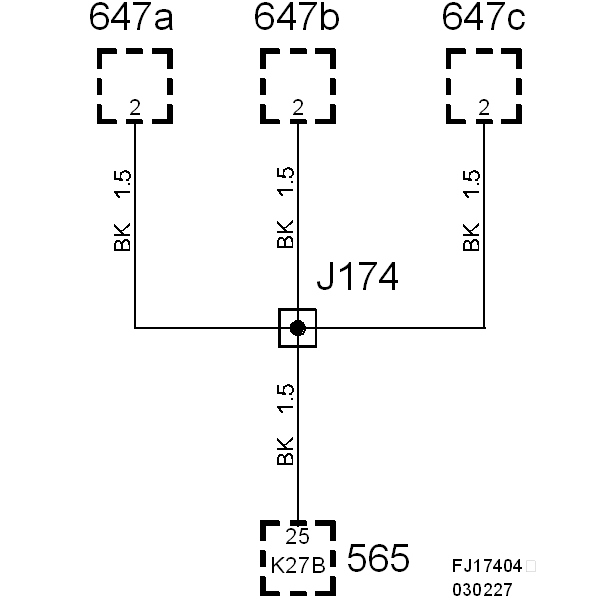

Fig 1: Crimp J174 (Soft Top Wiring Harness) - Circuit Diagram
G05566947Courtesy of SAAB-SCANIA OF AMERICA, INC.
