Control module, STC (565)

WARNING: This page is about a different car, the 2011 Saab 9-3 and 2010 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location: on the RH rear wheel housing

K27A

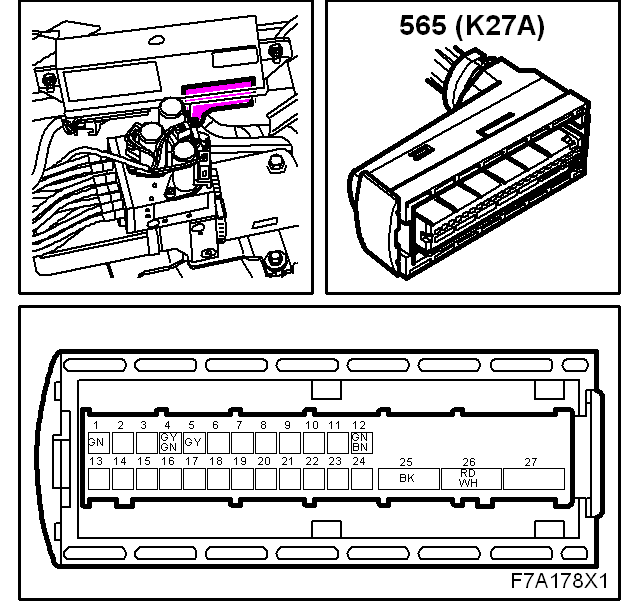

Fig 1: Identifying Control Module, STC (K27A)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

K27B

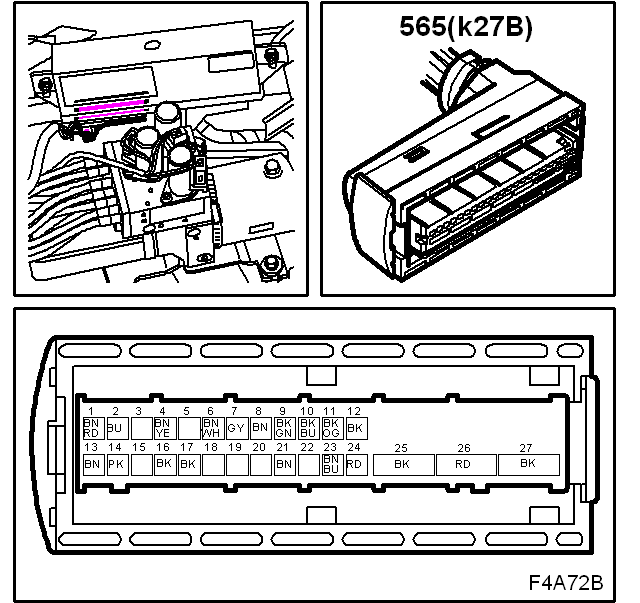

Fig 2: Identifying Control Module, STC (K27B)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
