Instrument panel electrical Center 22 (IPEC): Relays
The electrical center can contain a greater number of relays than those listed below. See BUZZERS, RELAYS & TIMERS . In such cases, these are not connected to a wiring harness.

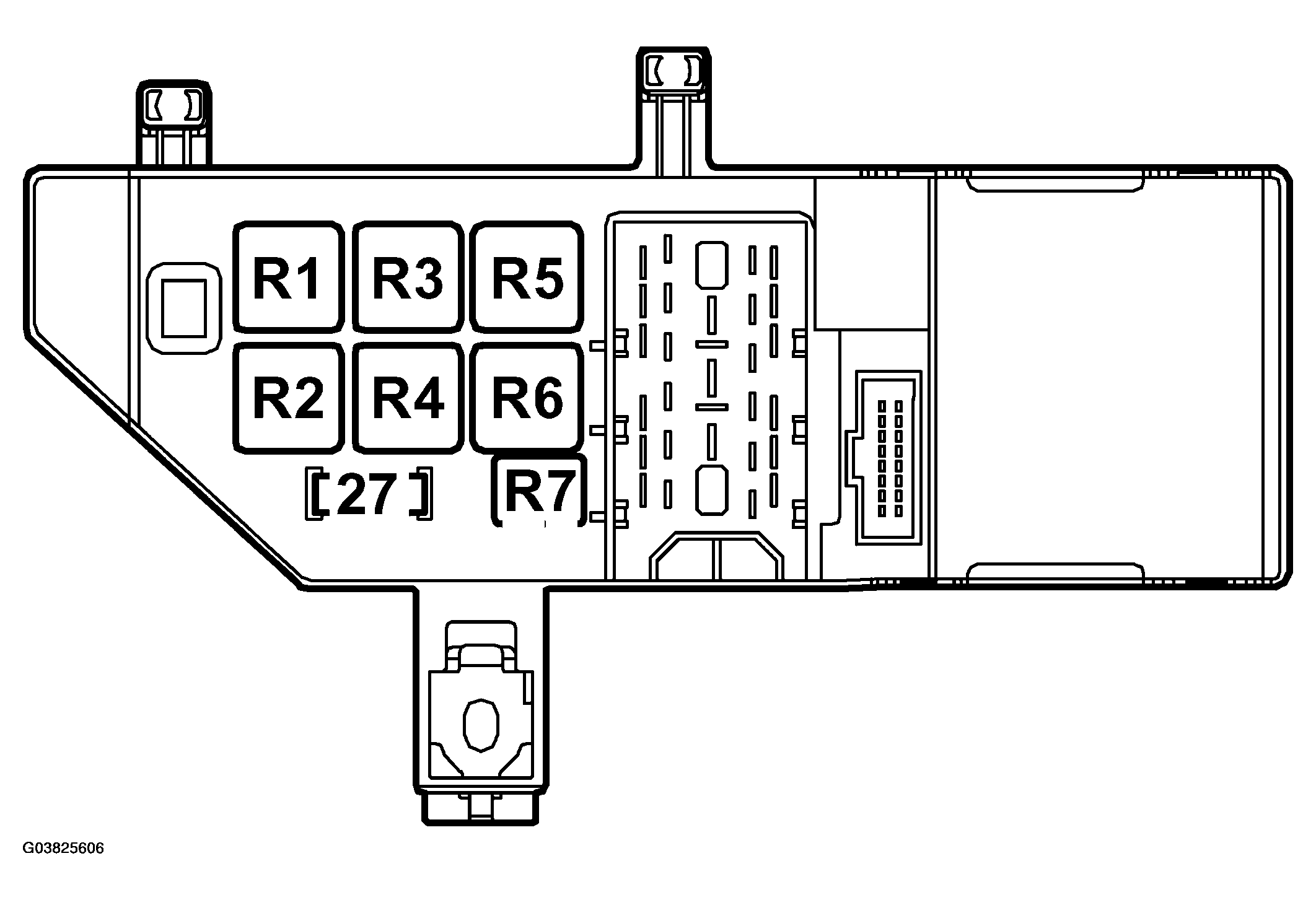

RELAY IDENTIFICATION AND LOCATION (1)
| Location | No. | Description | ||
|---|---|---|---|---|
| R1 | 21 | Relay, +54 | ||
| R2 | 757C | Relay, +15, IPEC | ||
| R3 | - | |||
| R4 | - | |||
| R5 | - | |||
| R6 | 756 | Relay, accessories | ||
| R7 | - | |||
| Soldered circuit board | 717 | Relay, interior lighting | ||
|
||||
