To fit

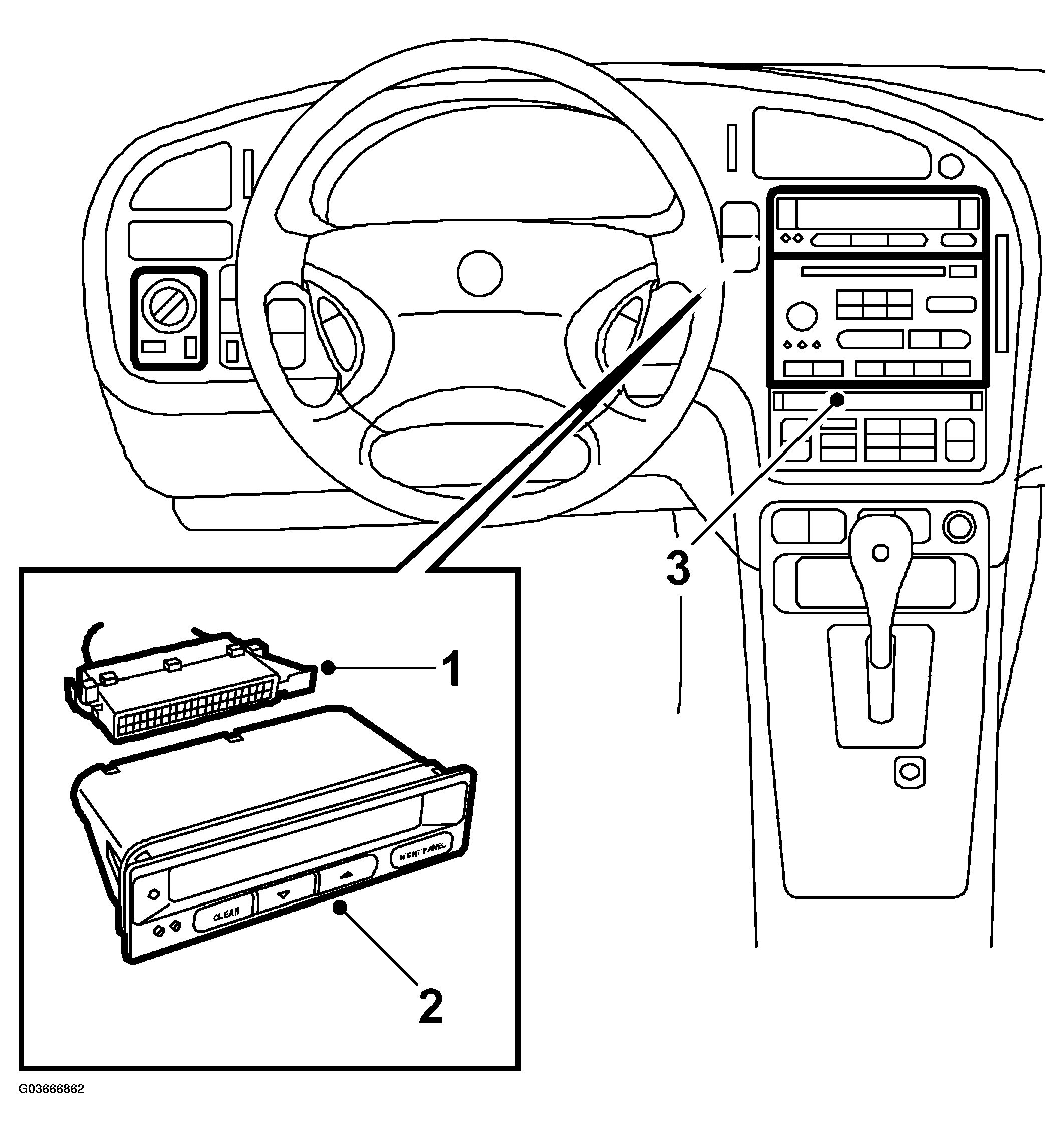

Fig 1: Illustration For Step 1 To 3
G03666862Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the connector to the SID.
  2. Slide in the SID.
  3. Refit the main unit (audio) or radio.
  4. When changing the SID unit, the parts must be programmed. Follow the instructions in the diagnostic tool MENU "PROGRAMMING" .
    NOTE: Restore settings on the SID unit clock.
