To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

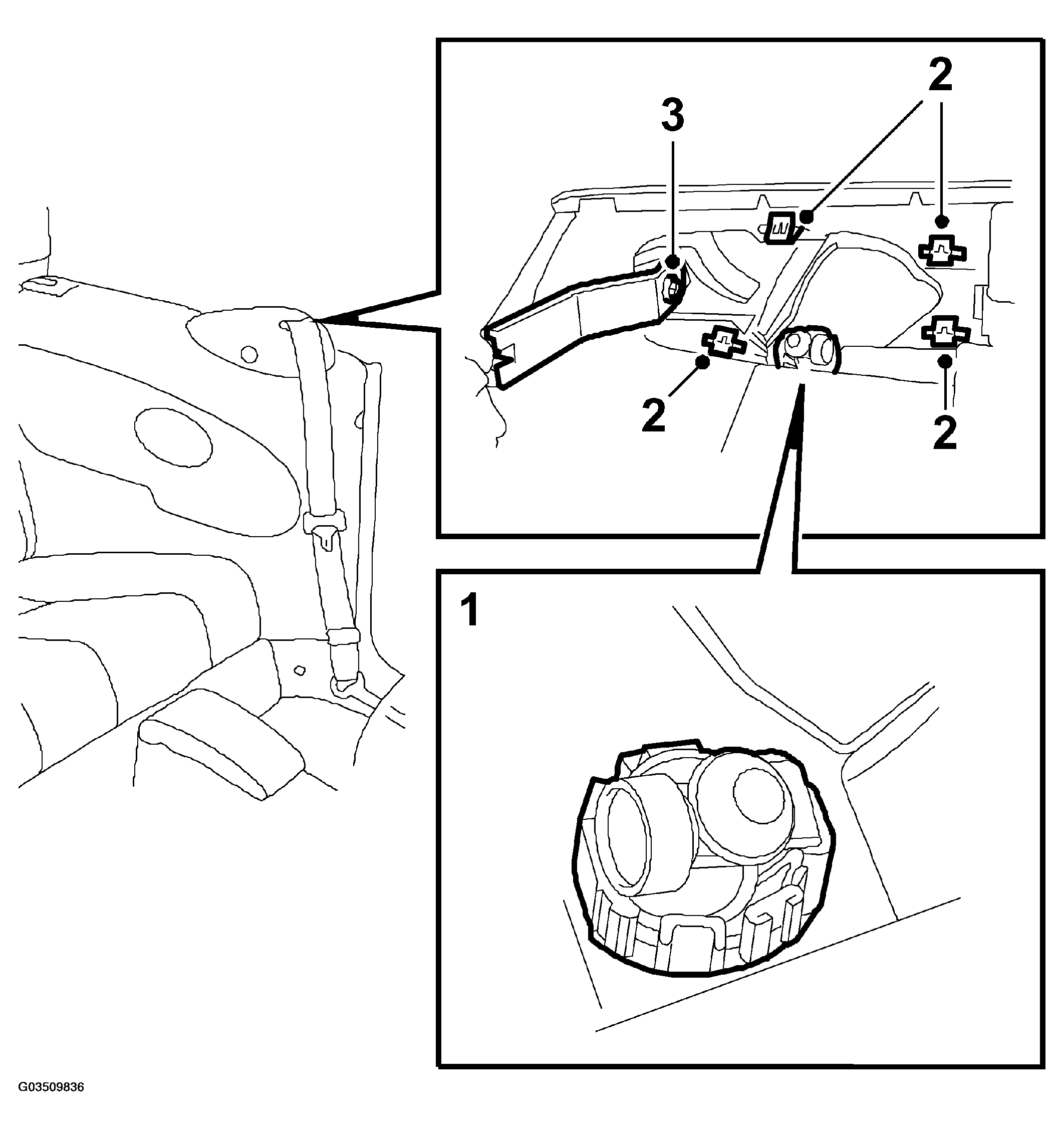

Fig 1: Illustration For Step 1-3
G03509836Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the interior lighting in the strap guide cover.
  2. Fit the strap guide cover on the trim and fasten the clips.
  3. Tighten the bolt.
  4. Refit the side trim. see TO FIT .
