To Fit
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Two persons should work together in steps 1 and 2
.

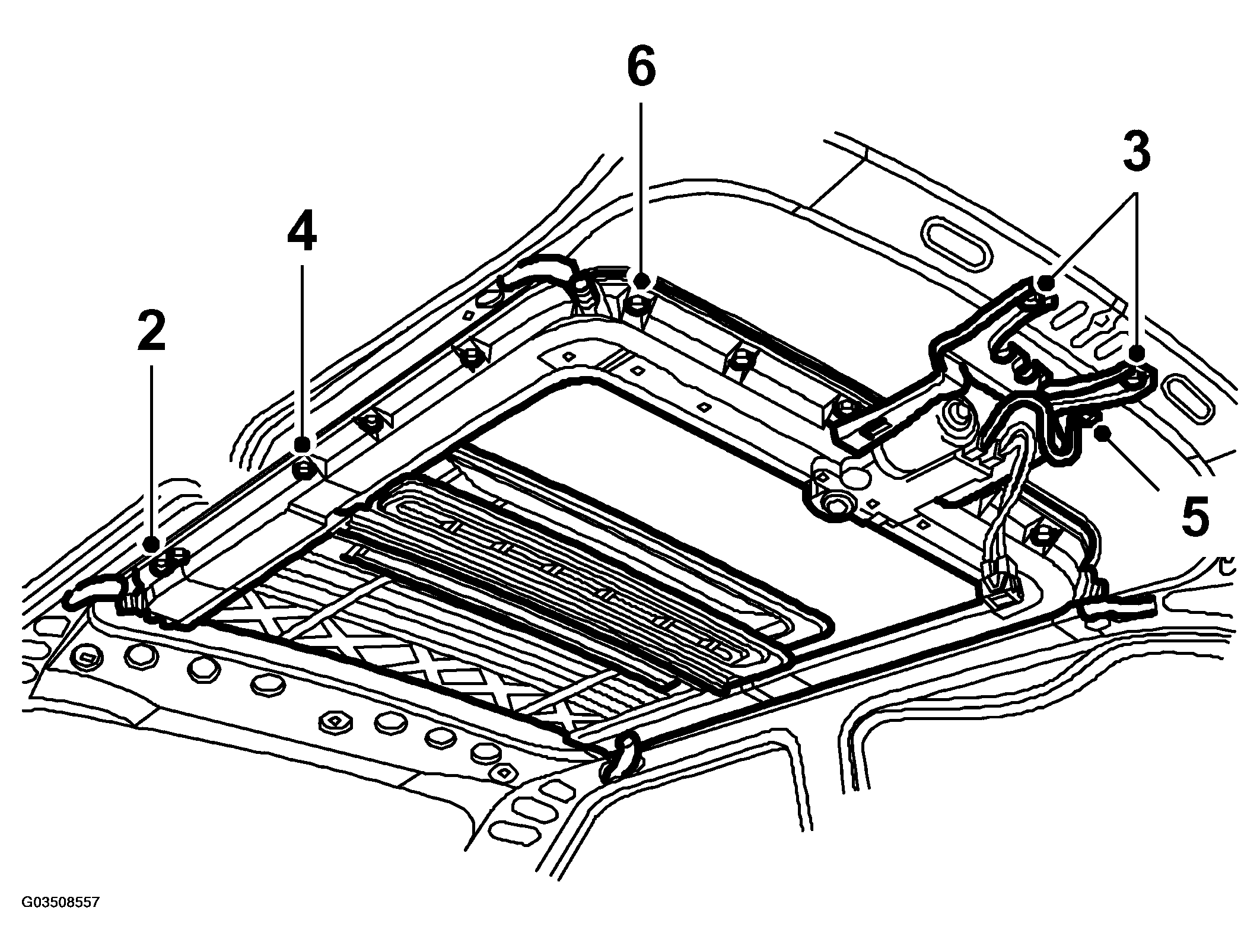

- With assistance, lift the sunroof unit into position, make sure that unit fits into its guides.
- Tighten a bolt at the front edge and a bolt at each rear corner (2 persons).
- Fit the console for the interior lighting.
- Fit and tighten the remaining retainer bolts for the sunroof unit.
Tightening torque 5 N.m (3.7 lbf ft)
- Connect the grounding point for the motor in the console for the interior lighting.
- Fit the four drain hoses onto the nipples.
- Fit the headlining, see TRIM, HEADLINING .
- Check the function.
