To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

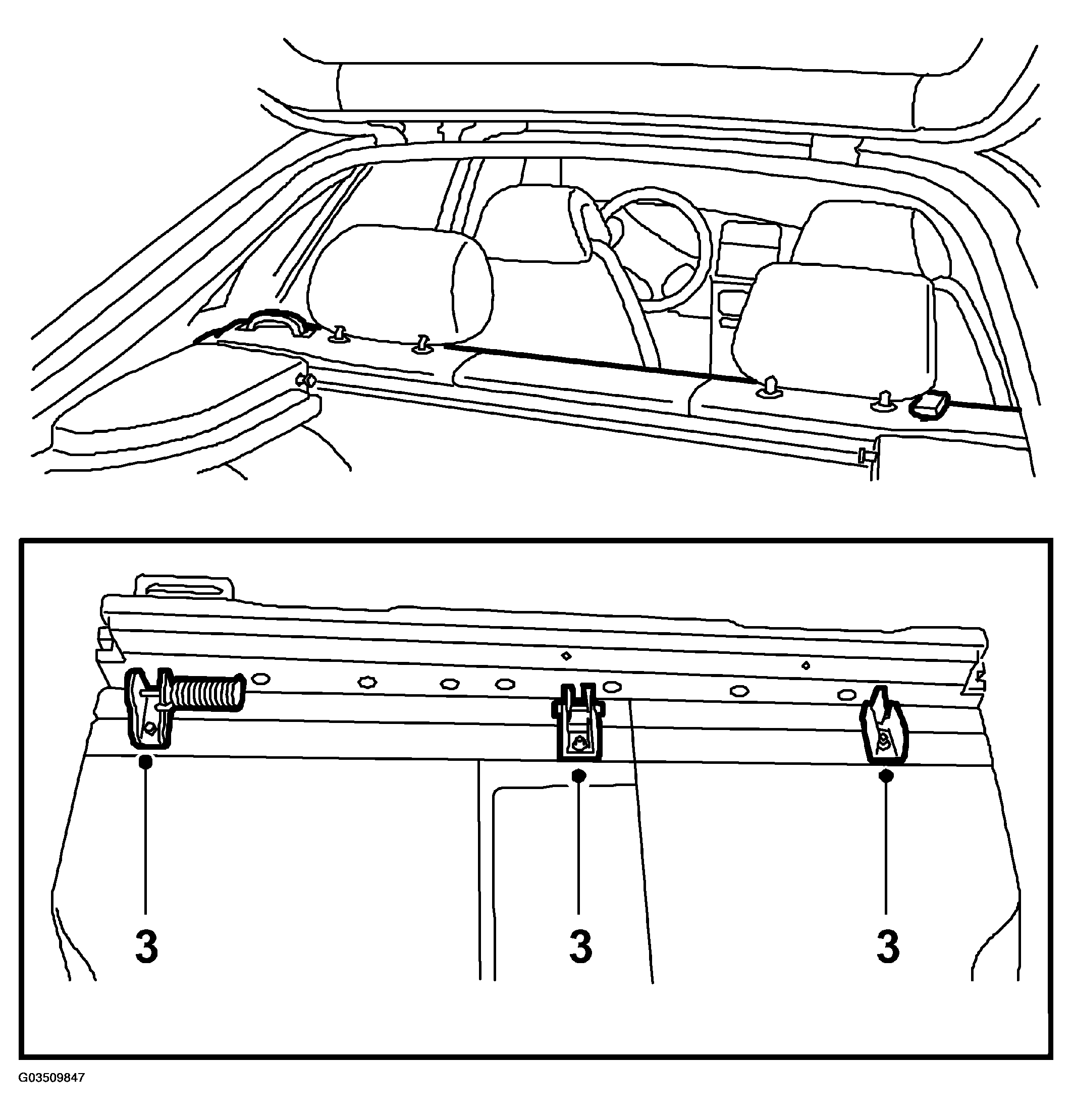

Fig 1: Illustration For Step 3
G03509847Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rear belts, To remove .
  2. Lower the entire backrest with the belt member.
  3. Undo the three nuts securing the belt member to the backrest plates and lift off the member.
    NOTE: Let the 40% backrest bracket hang in locked position in the lock. This will facilitate the lock function when fitting.
