To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the rear seat, both cushions.

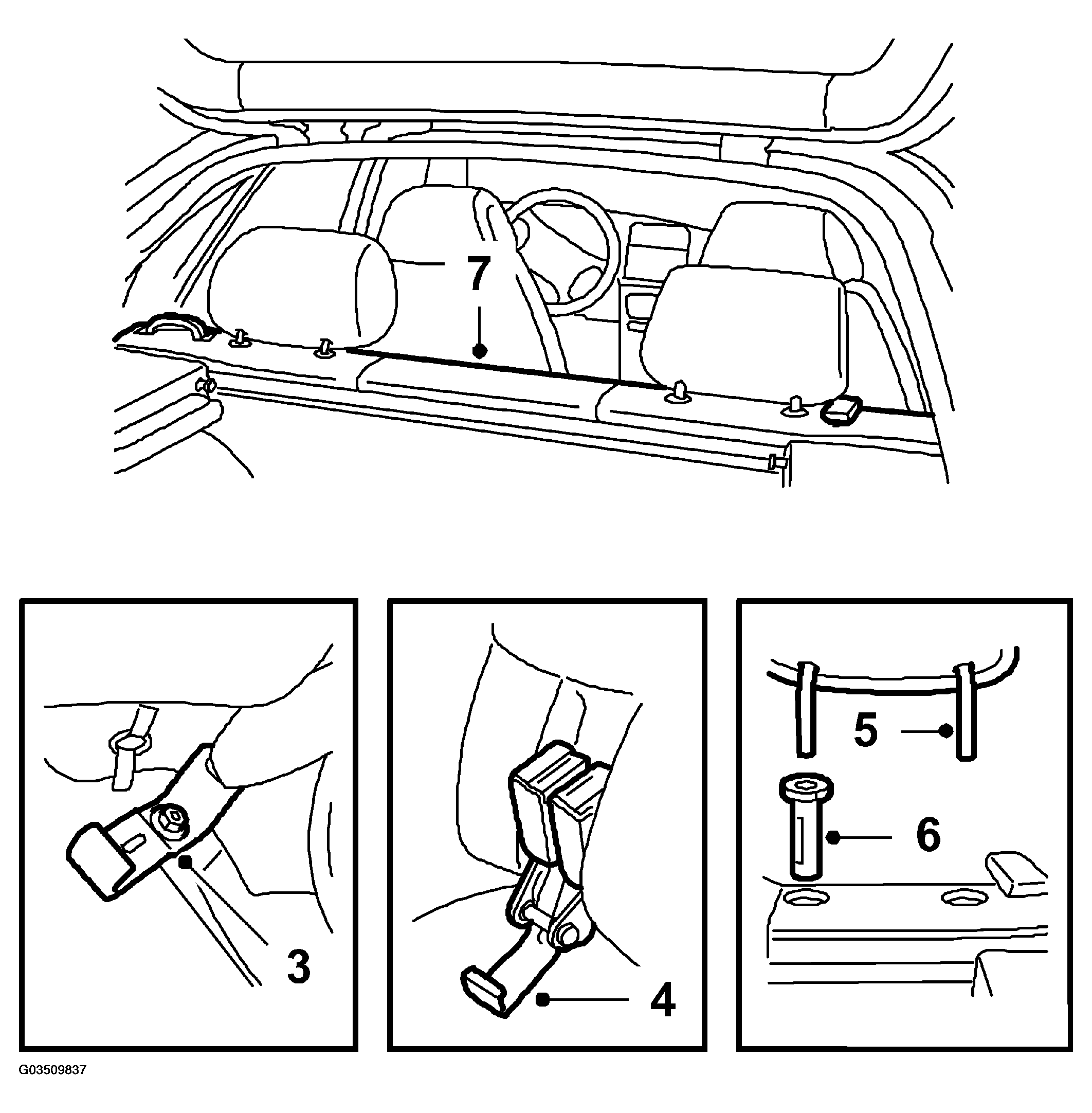

    Fig 1: Illustration For Step 3-7
    G03509837Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. 5-door:  Remove the scuff plates on the right and left-hand rear sills (fastened with clips).
  3. Remove the seat-belt anchorages on the sides, they are fastened to the side impact protection.
  4. Remove the center belt anchorage.
  5. Remove both the rear head restraints.
  6. Remove the head restraint mountings from the belt member. Release the catch inside the sleeve with a screwdriver and tap out the mounting from below.
  7. Undo the center cover on the belt member, it is fastened with clips.
  8. Remove the lock handle for the 40% section.

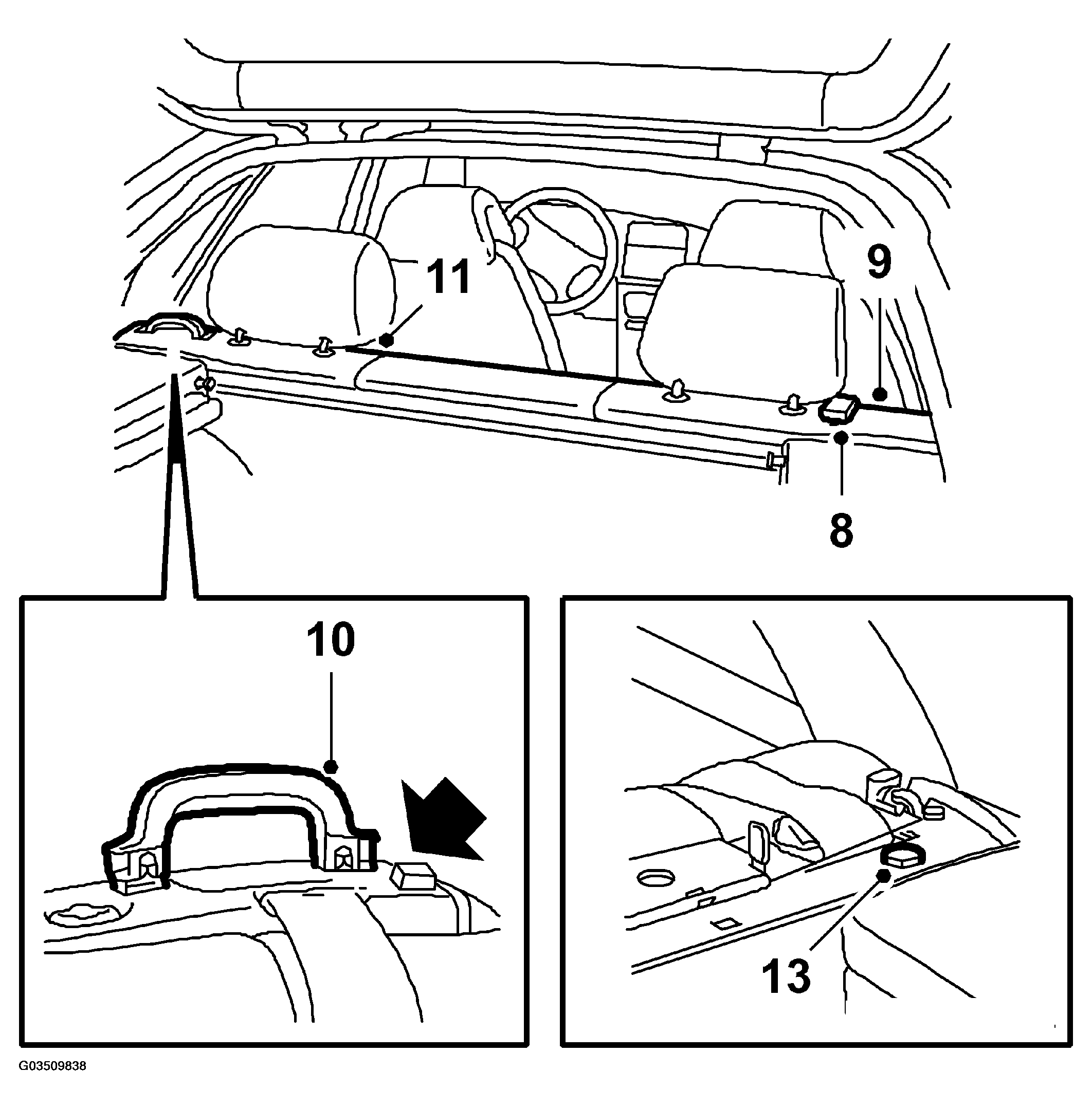

    Fig 2: Illustration For Steps 8-11, 13
    G03509838Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the right-hand cover and unhook the cable from the lock arm.
  10. Remove the belt member release handle and undo the cable from the handle.
  11. Undo the left-hand cover on the belt member.
  12. Remove the covers from the seat belts.
  13. Remove the inertia reel retaining bolts.
