To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

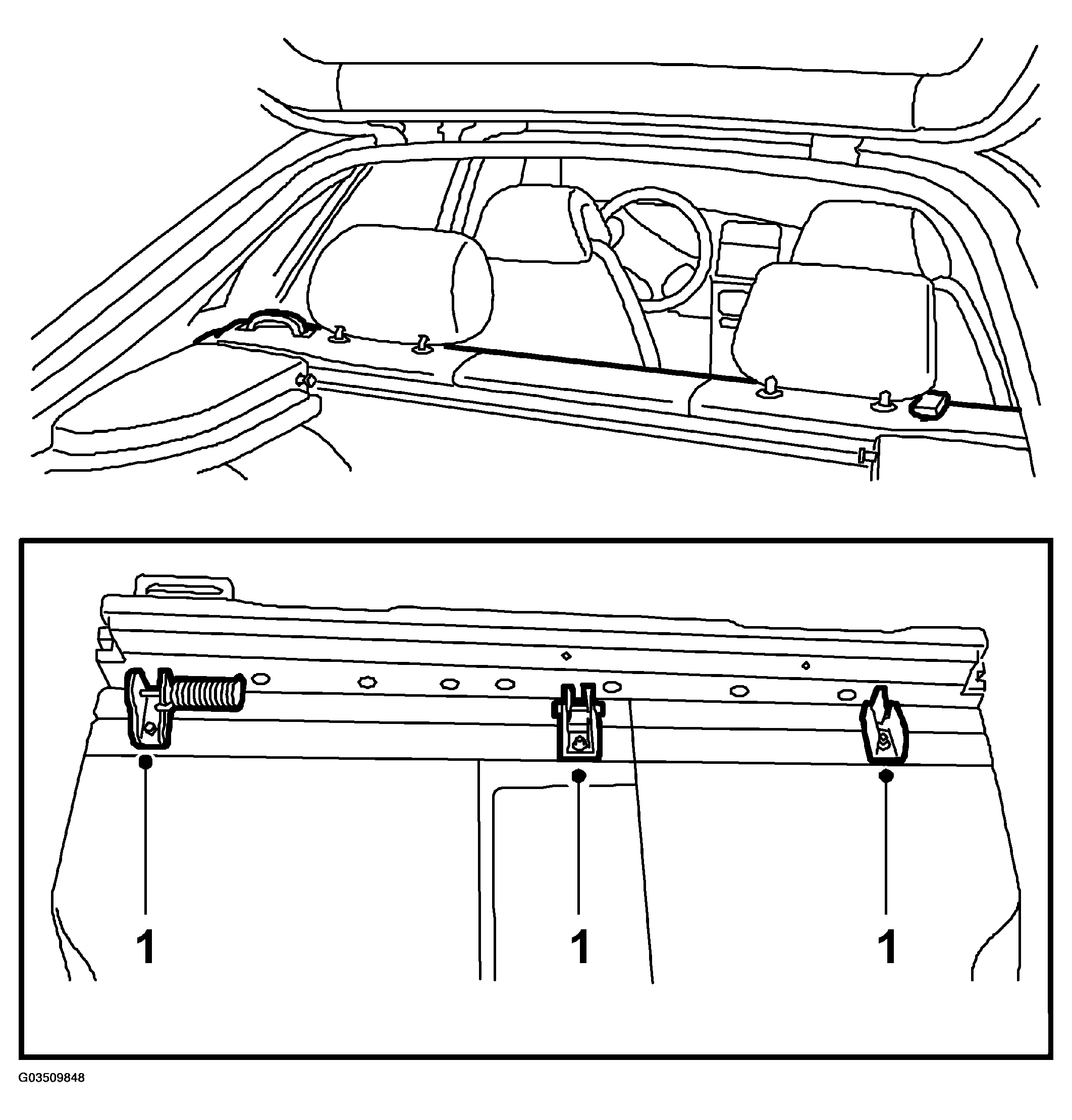

Fig 1: Illustration For Step 1
G03509848Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Refit the member and tighten the three nuts securing the belt member to the backrest plates.
  2. Raise the entire backrest with the belt member.
  3. Fit the rear belts, To fit .
    NOTE: To facilitate correct fitting, press the belt member into the brackets before fitting the member to the backrest. Make sure the indicator showing that the member is properly locked is in working order.
