To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

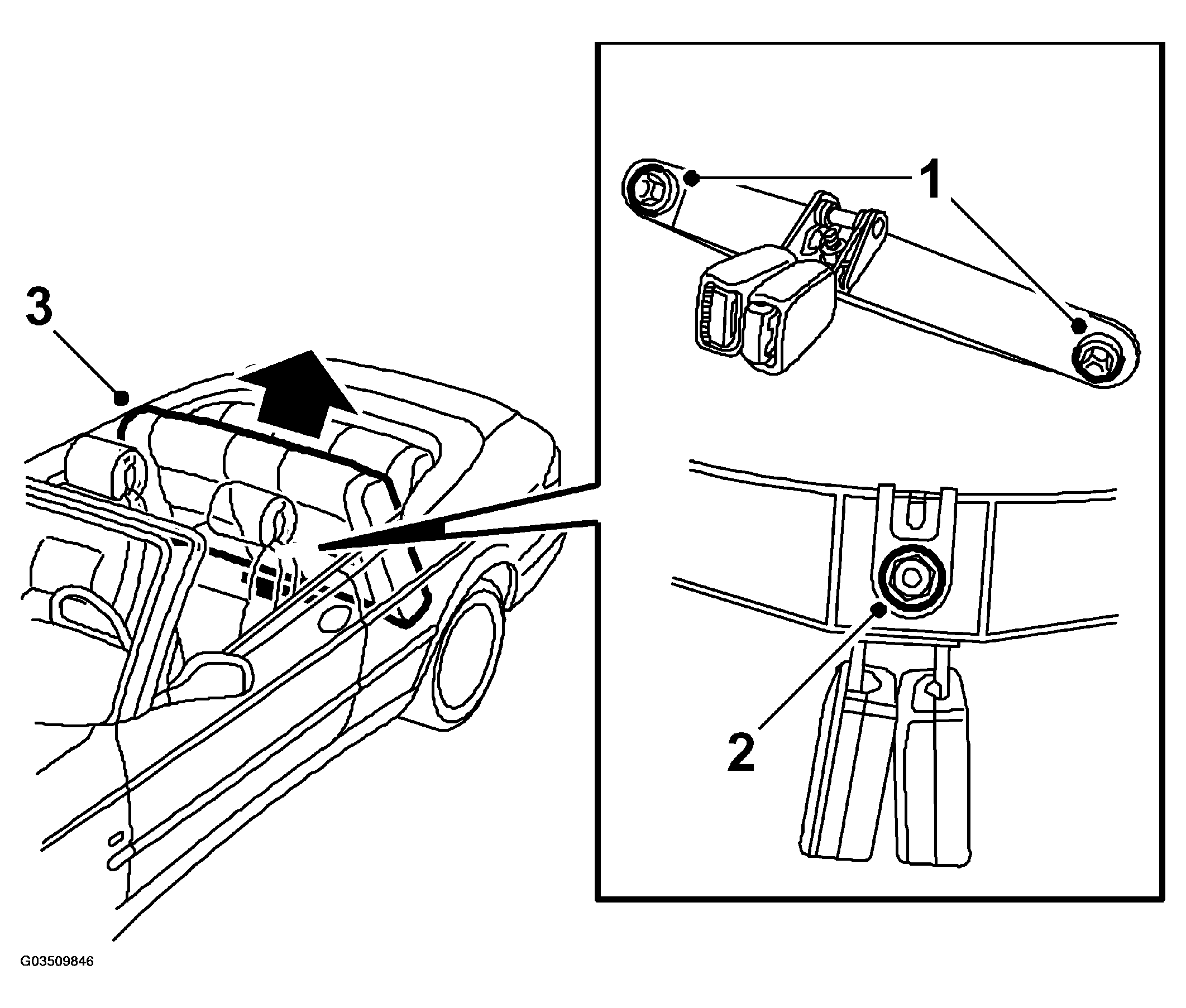

Fig 1: Illustration For Step 1-3
G03509846Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the belt-buckle bracket and tighten the bolts.

    Tightening torque 45 N.m (33.3 lbf ft)

  2. Fit the belt-buckle and tighten the nut.

    Tightening torque 45 N.m (33.3 lbf ft)

  3. Refit the seat cushion.
