To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

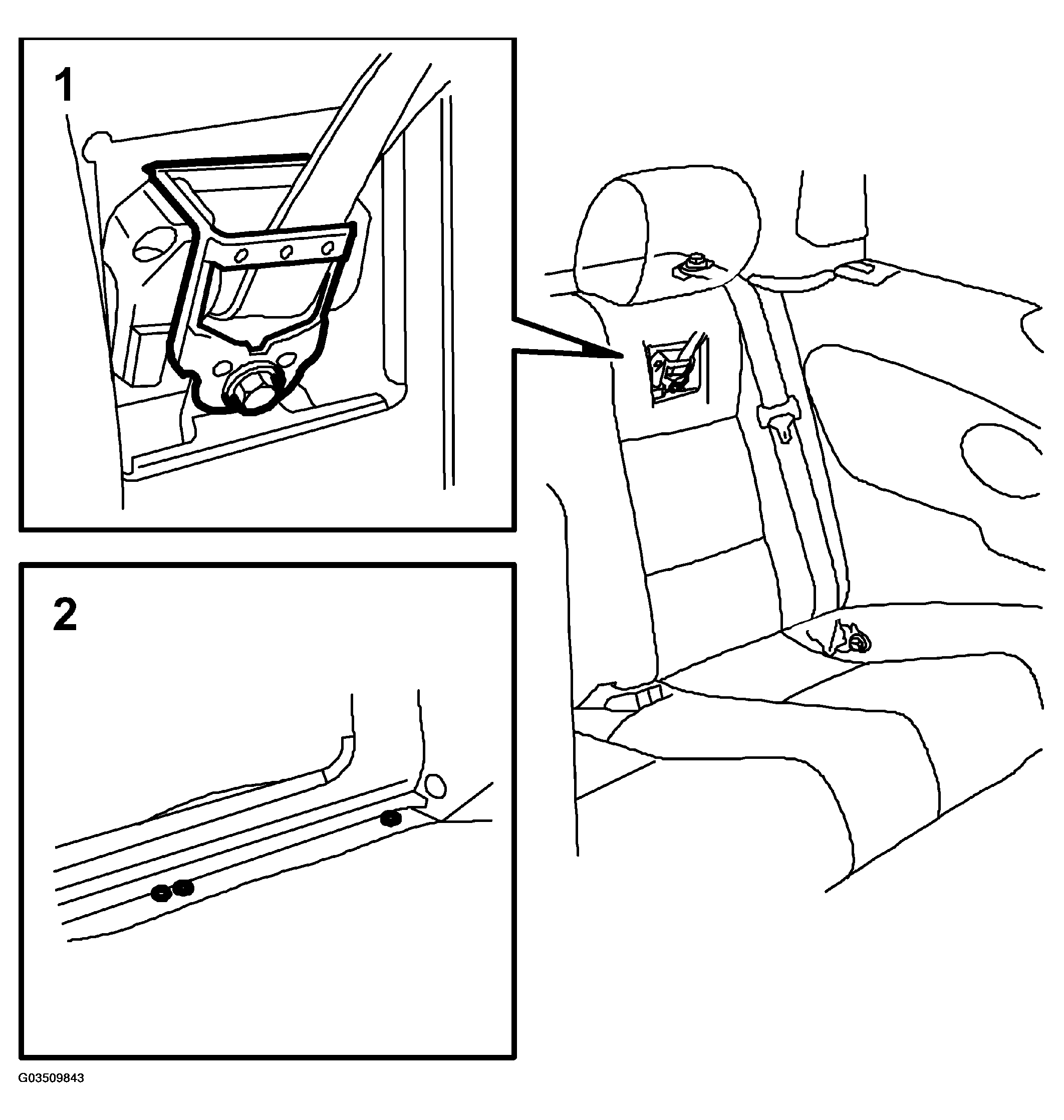

Fig 1: Illustration For Step 1-2
G03509843Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the seat belt reel and tighten the bolt.

    Tightening torque 45 N.m (33.3 lbf ft)

  2. Fit the upholstery in place and press on the clips securing it under the long-load opening. see TO FIT .
  3. Fasten the clips securing the upholstery above the long-load opening.

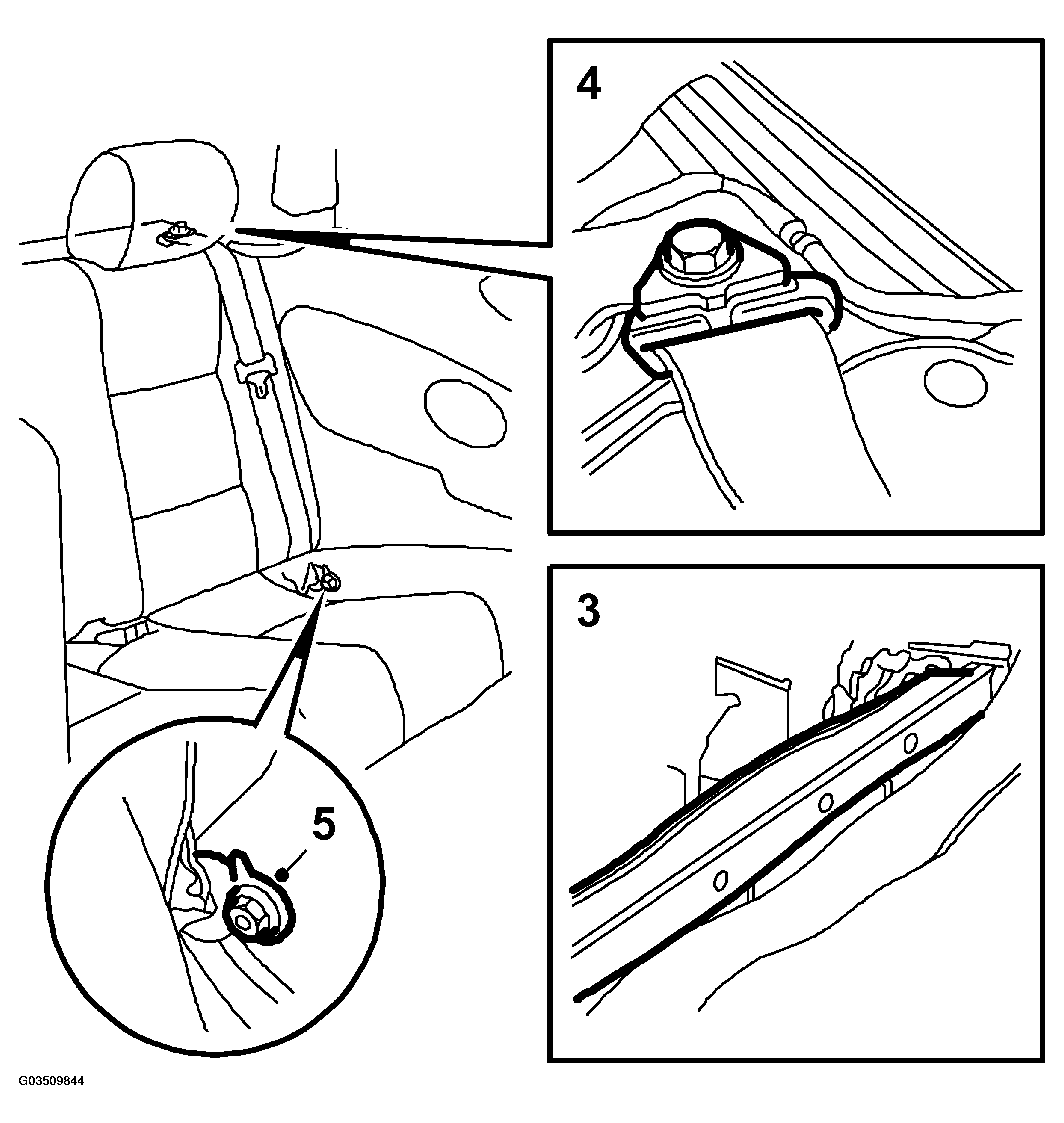

    Fig 2: Illustration For Step 3-5
    G03509844Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the strap guide and tighten the bolt.

    Tightening torque 45 N.m (33.3 lbf ft)

  5. Tighten the bolt securing the seat belt to the floor.

    Tightening torque 45 N.m (33.3 lbf ft)
