To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side trim. See TO REMOVE .
  2. Unplug the connector for the belt tensioner.

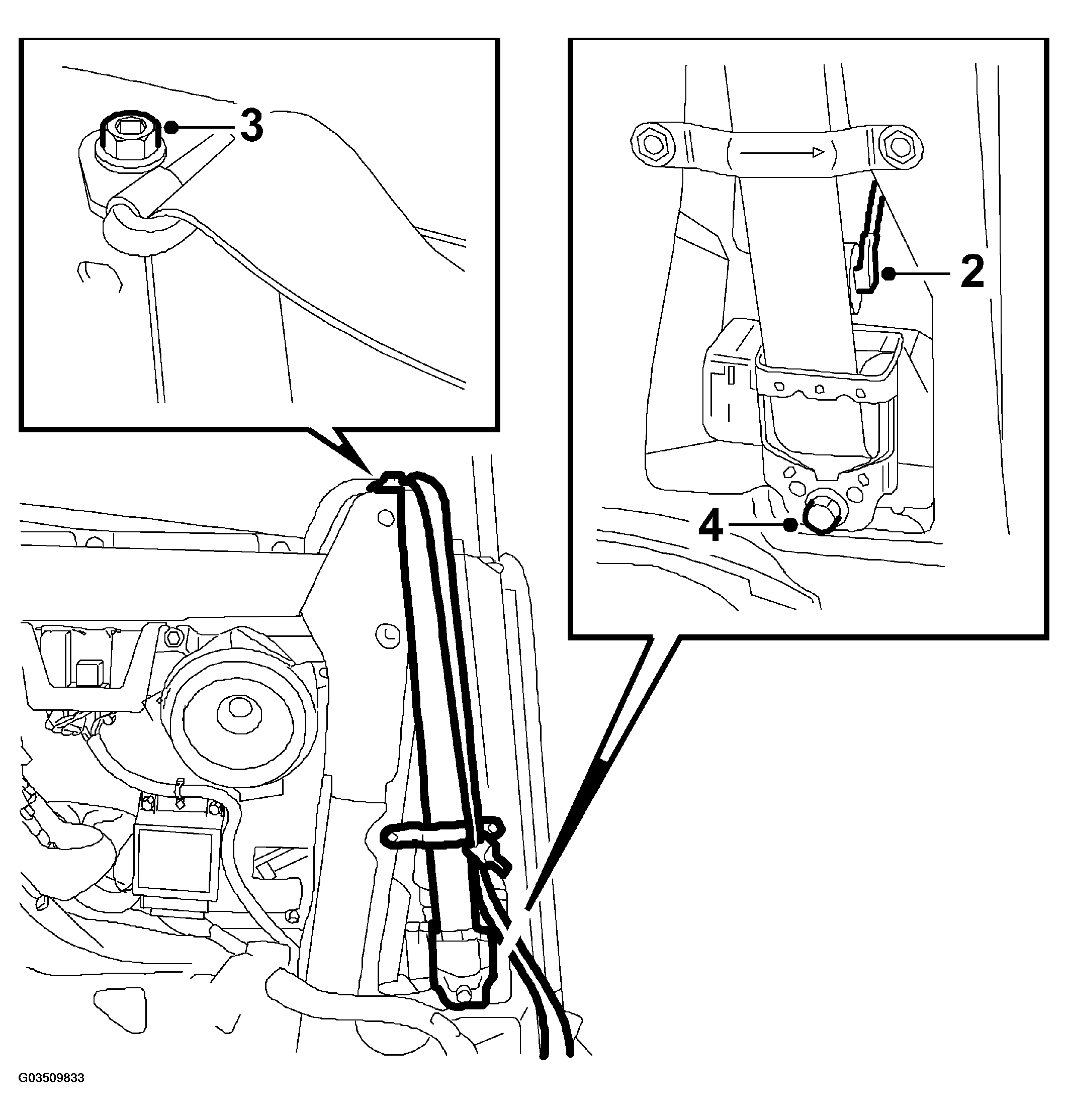

    Fig 1: Illustration For Step 2-4
    G03509833Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the bolt securing the strap guide.
  4. Remove the bolt securing the seat belt reel. Remove the seat belt and the belt tensioner.
