To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the soft top as shown in the illustration.

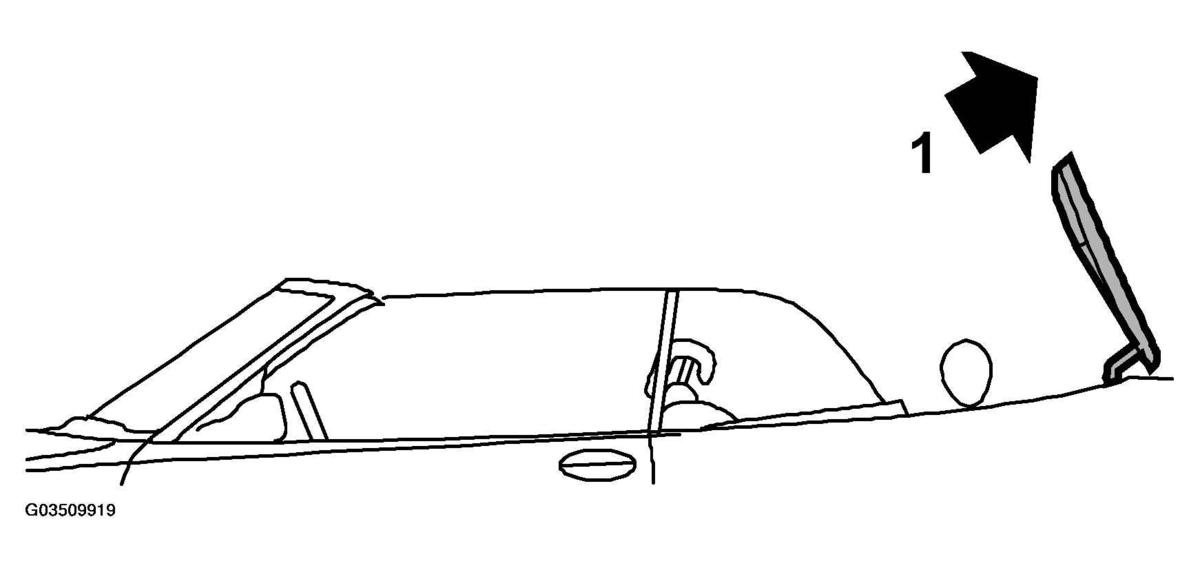

    Fig 1: Operating Soft Top
    G03509919Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the rear seat cushion.
  3. Remove the bolt which secures the front seat belt to the floor.
  4. Remove the scuff plate.

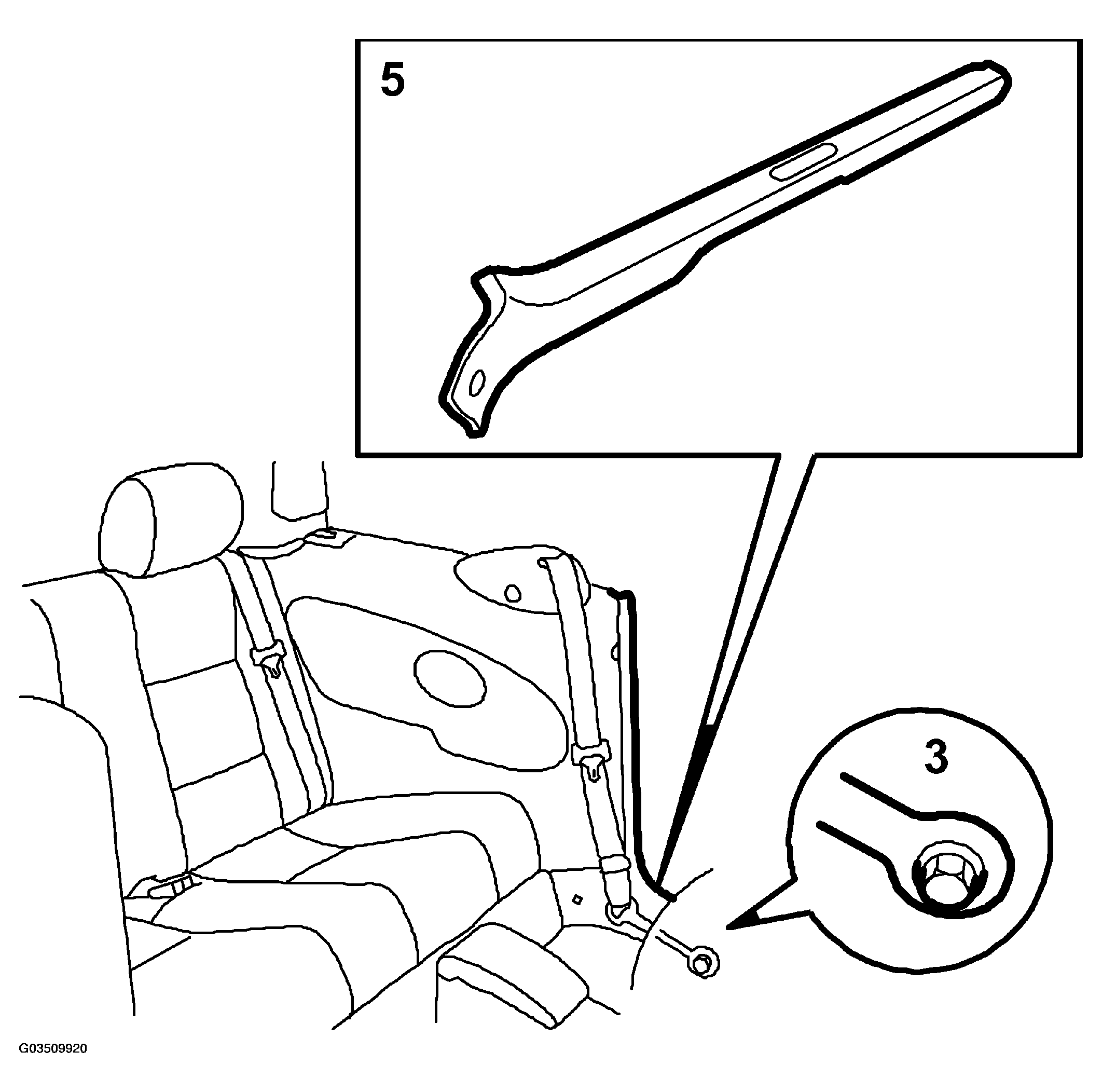

    Fig 2: Removing Scuff Plate
    G03509920Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the cover and remove the screw which secures the trim to the B-pillar.

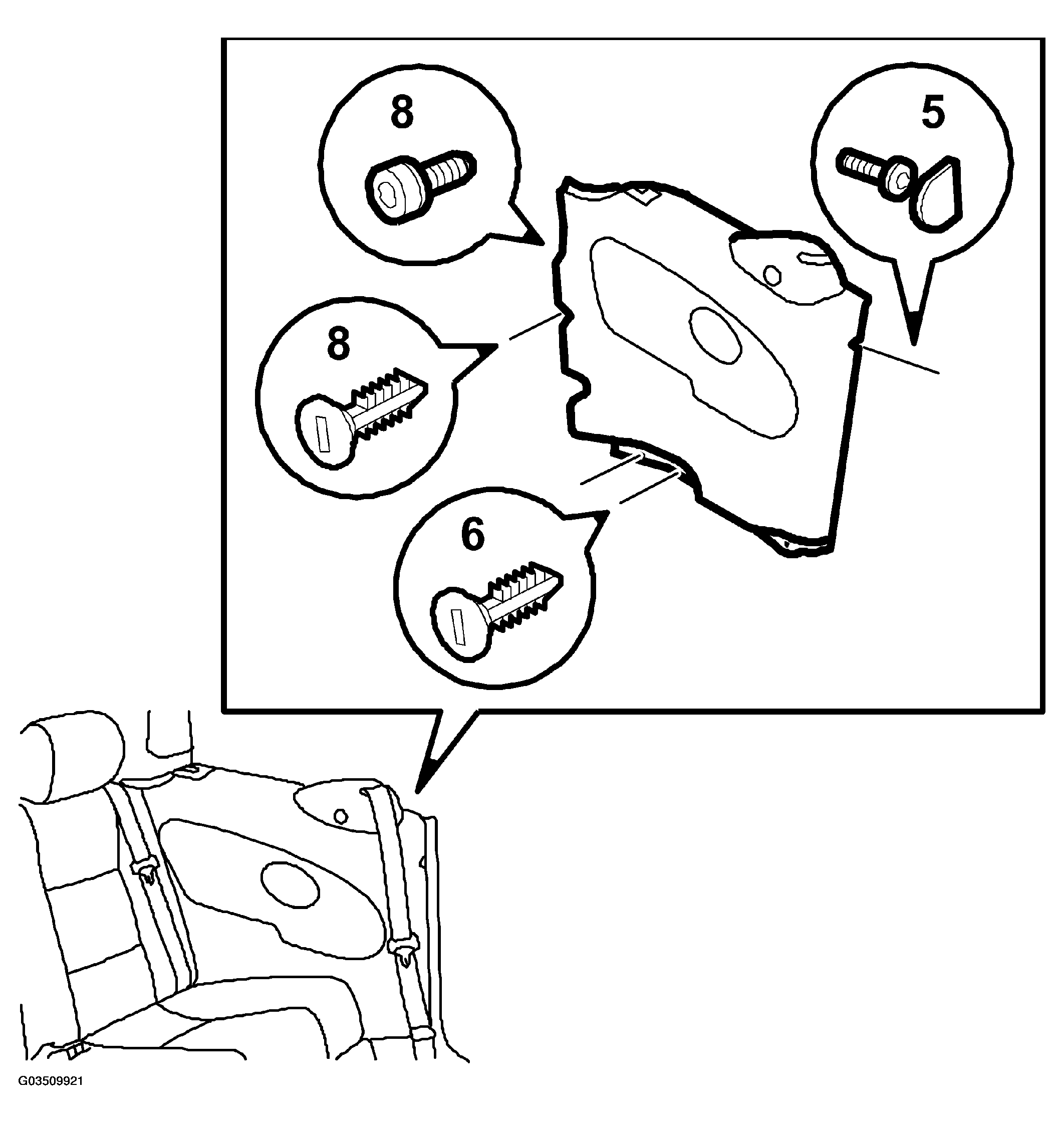

    Fig 3: Removing Plastic Screws
    G03509921Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the plastic screws which secure the trim to the lower edge.
  7. Fold the backrest forward.
  8. Remove the bolt and plastic screw securing the trim at the rear edge.
  9. Carefully pull up the trim to remove it from the clip at the upper rear corner. Hold the clip holder with one hand so that the holder and trim are not damaged.

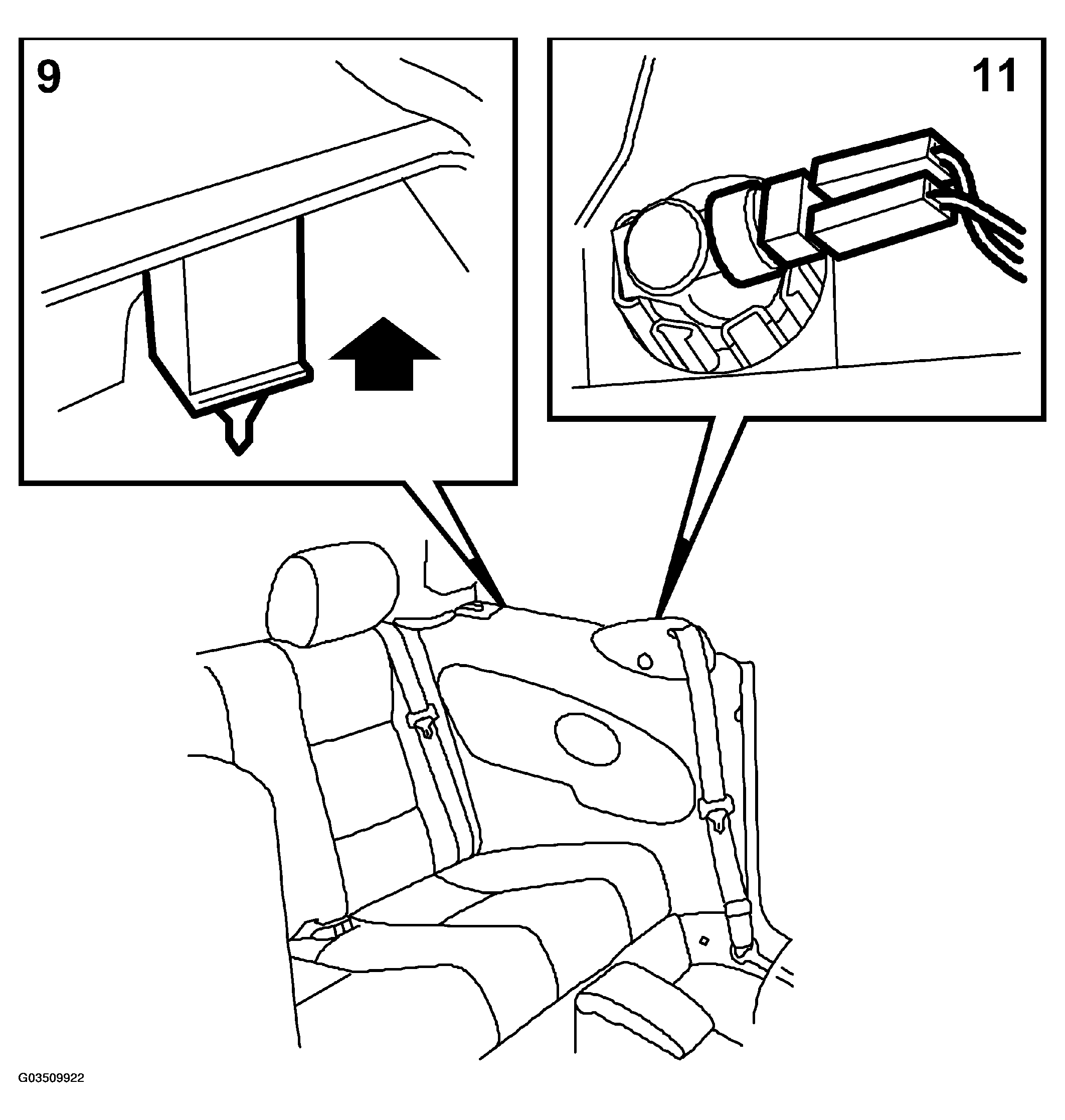

    Fig 4: Removing Seat Belt From Side Trim
    G03509922Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Do not bend the trim. The upholstery or clip can be damaged.
  10. Remove the seat belt from the side trim.
  11. Remove the lamp connector and remove the side trim.
