To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

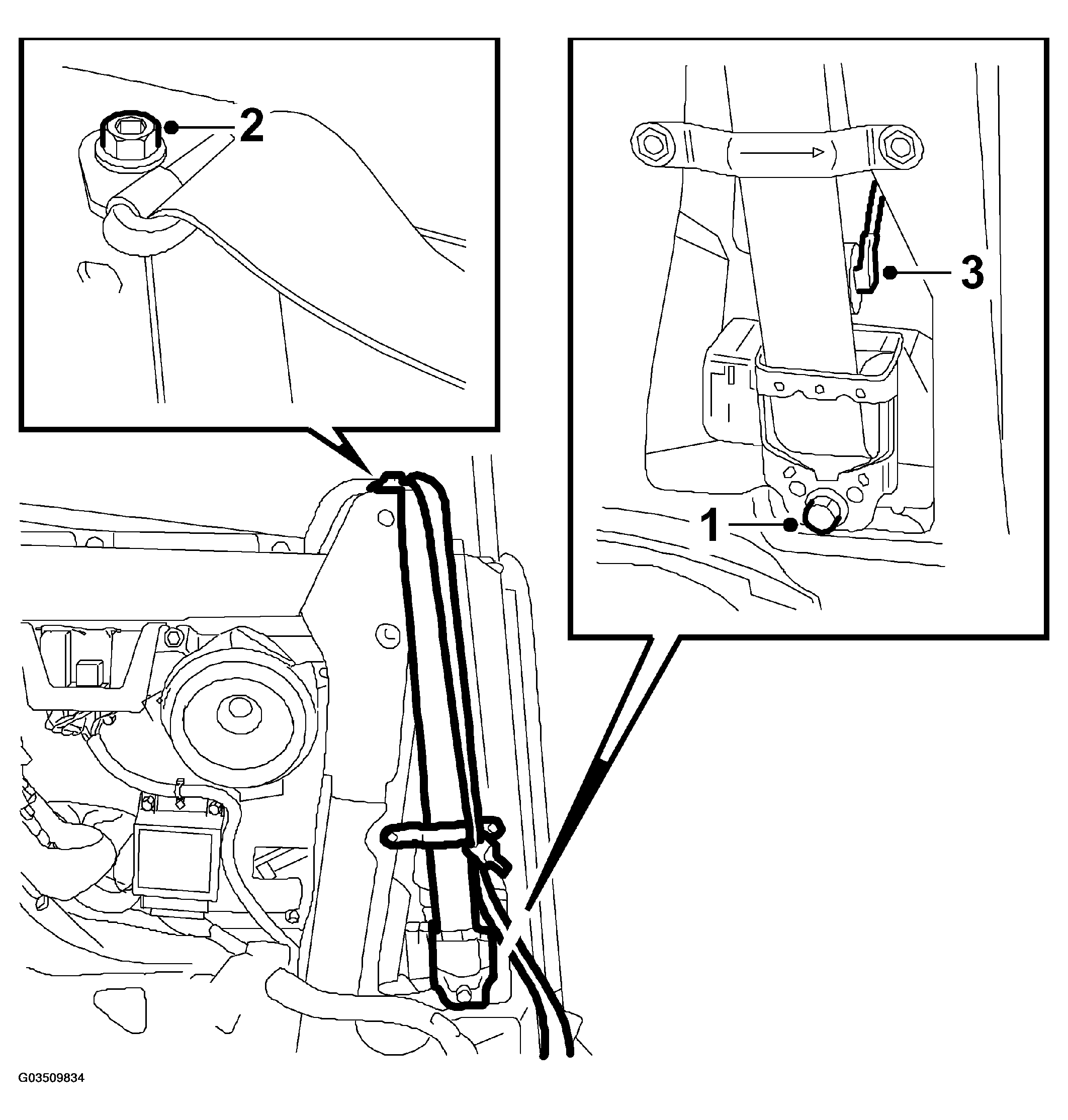

Fig 1: Illustration For Step 1-3
G03509834Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the seat belt reel and tighten the bolt securing it to the body.

    Tightening torque 45 N.m (33.3 lbf ft)

  2. Tighten the bolt securing the strap guide.

    Tightening torque: 45 N.m (33.3 lbf ft)

  3. Plug in the connector for the belt tensioner.
  4. Refit the side trim. See TO FIT .
