To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

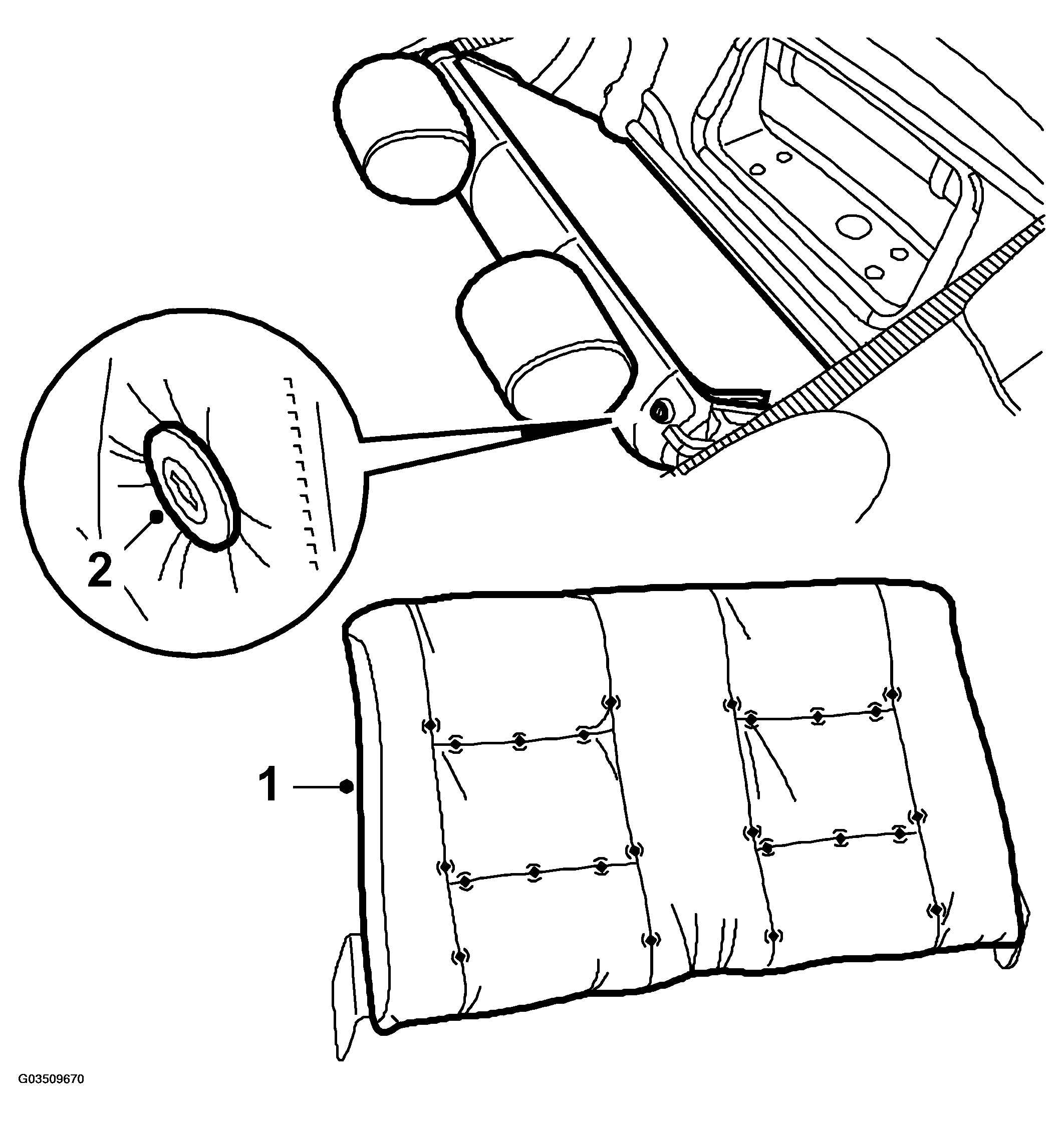

Fig 1: Illustration For Steps 1-2
G03509670Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the upholstery and hook on the staples.
  2. Fit the upholstery by the lock cylinder.
  3. Refit the upholstery on the rear of the backrest cushion.

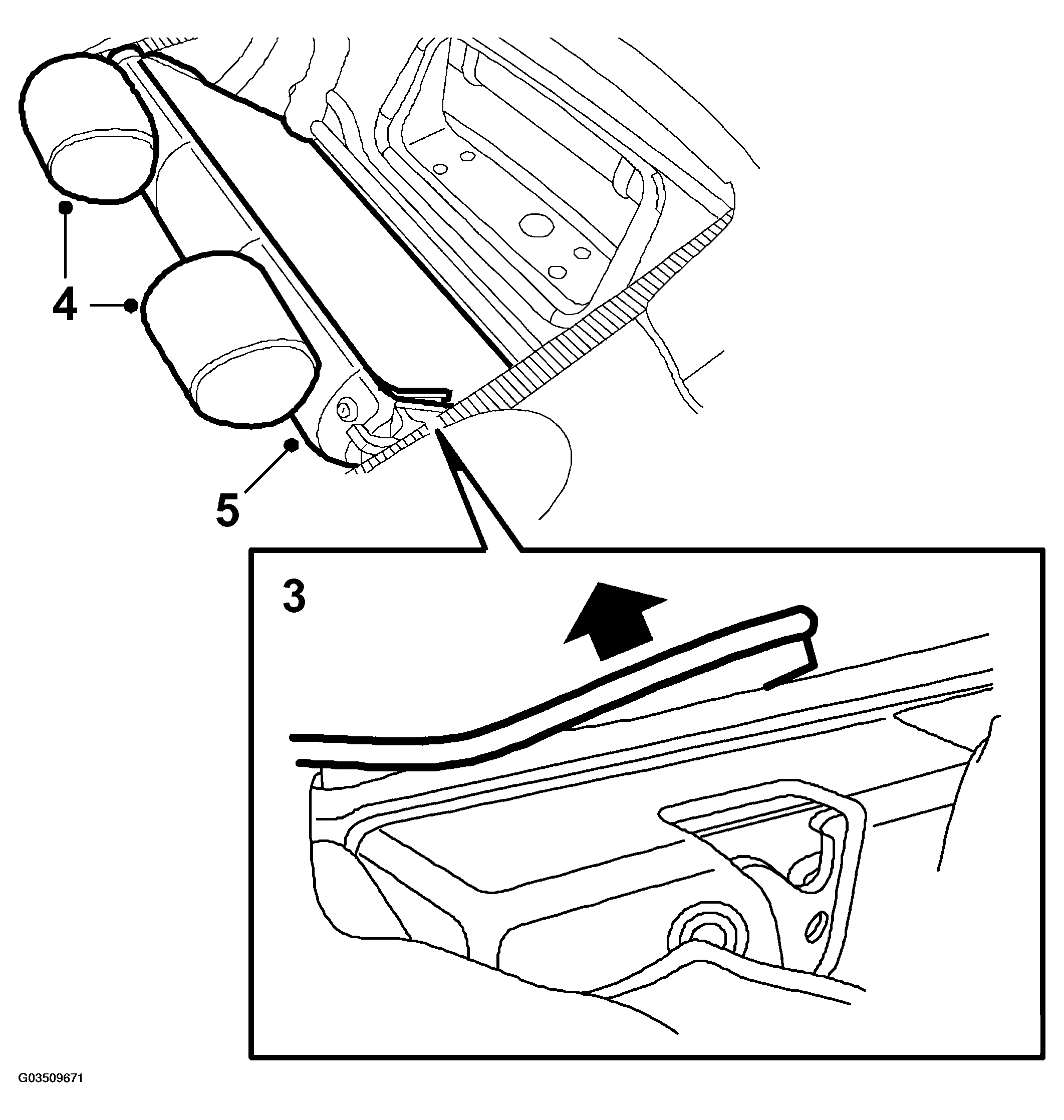

    Fig 2: Illustration For Steps 3-5
    G03509671Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Refit the head restraints.
  5. Put the backrest cushion in place in the car. See TO FIT .
