To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

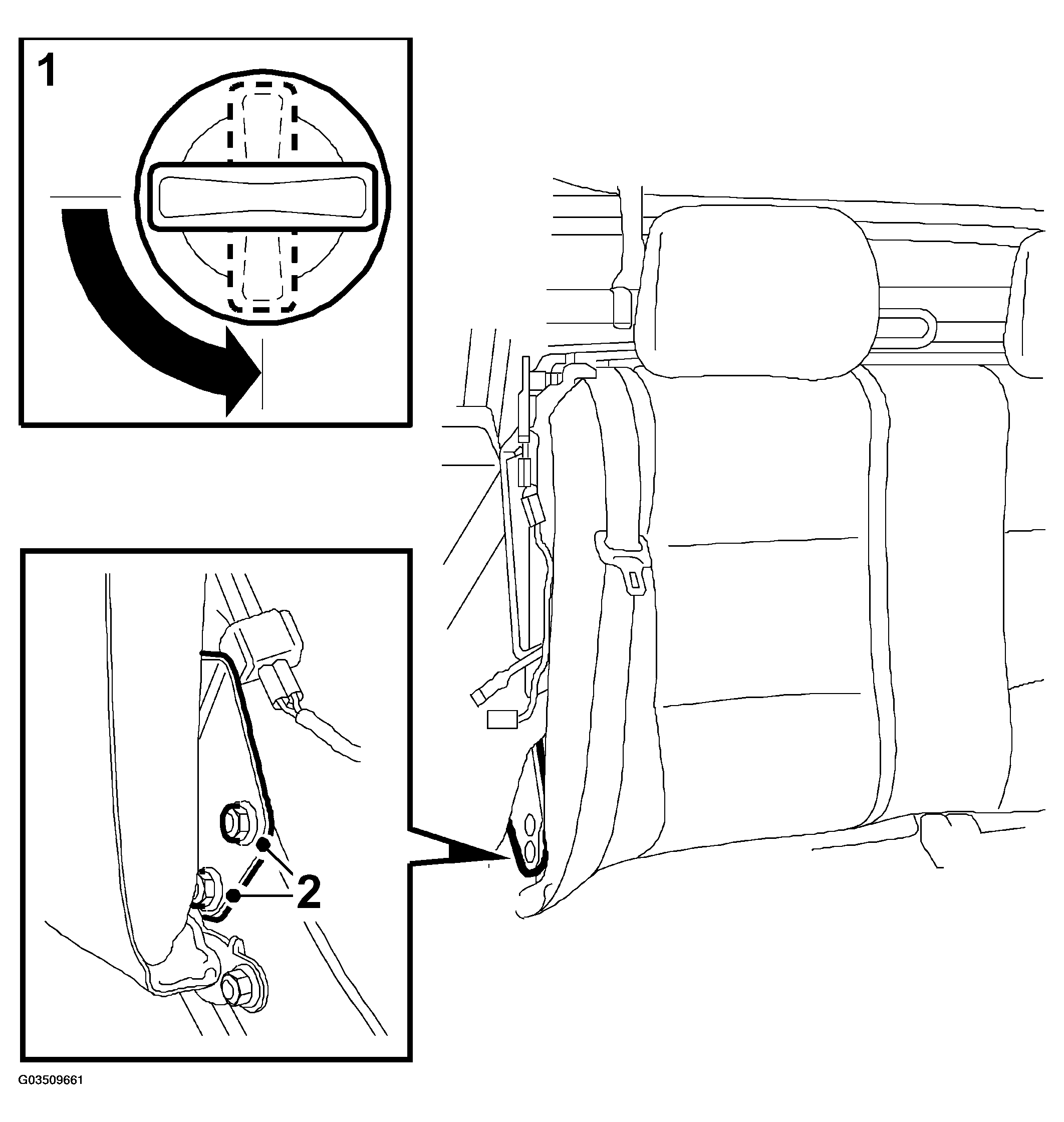

Fig 1: Illustration For Steps 1-2
G03509661Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the backrest cushion and raise it completely.
  2. Tighten the bolts securing the backrest cushion.
  3. Refit the side trim. See TO FIT .
