Microswitch, fifth bow intermediate position: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the microswitch and tighten the bolt.
  2. Insert the wiring harness.
  3. Close the soft top and raise the fifth bow.
  4. Insert the wiring harness behind the cylinders and follow the wiring harness for the electrically heated rear window.
  5. Fit new cable ties.
  6. Plug in the connector.
  7. Connect the diagnostics tool and erase any diagnostic trouble code.

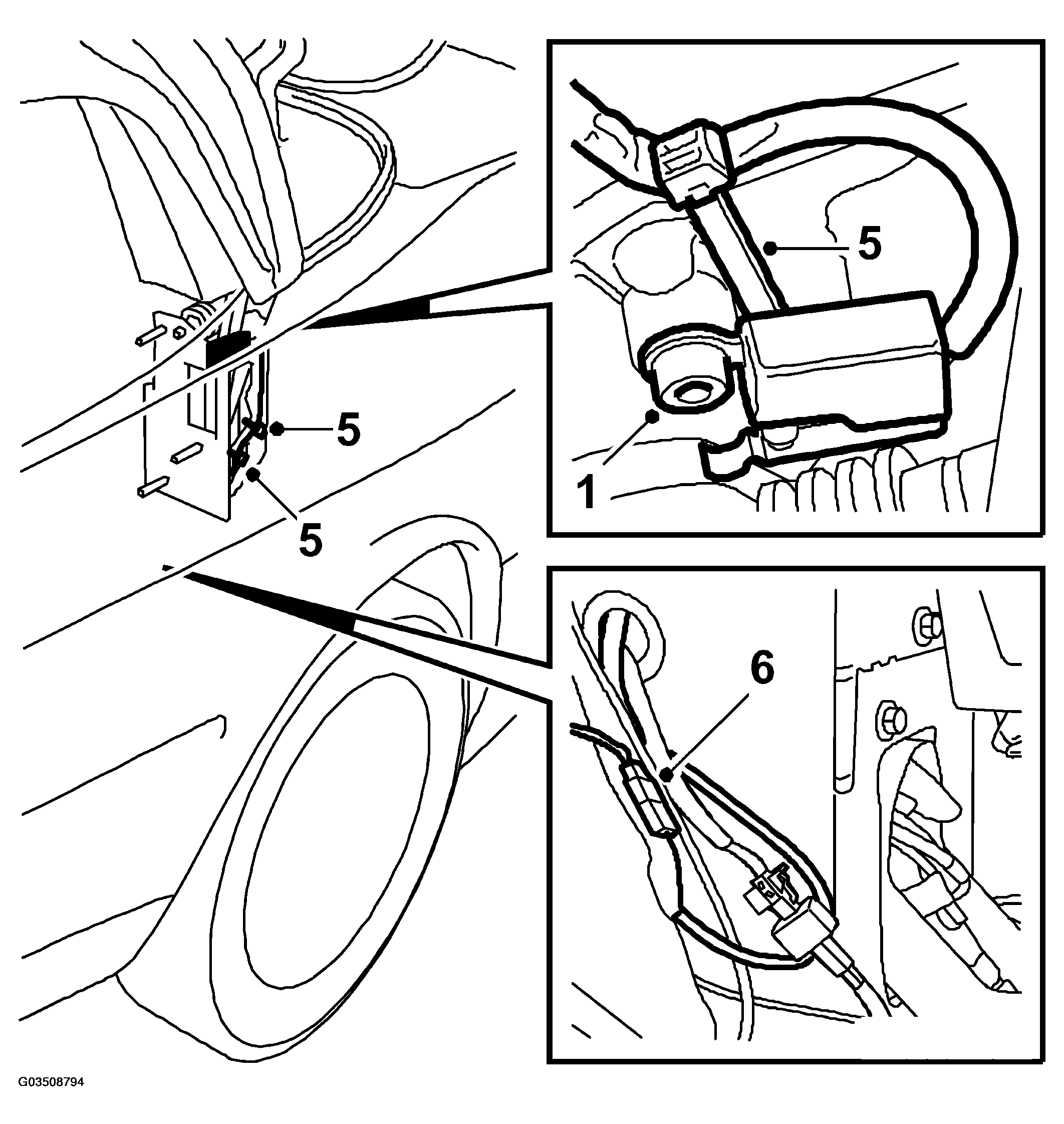

    8. Fig 1: Illustration For Steps 1, 5 & 6
    G03508794Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Fit the rear side trim. See FITTING .
