Second bow: Fitting
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

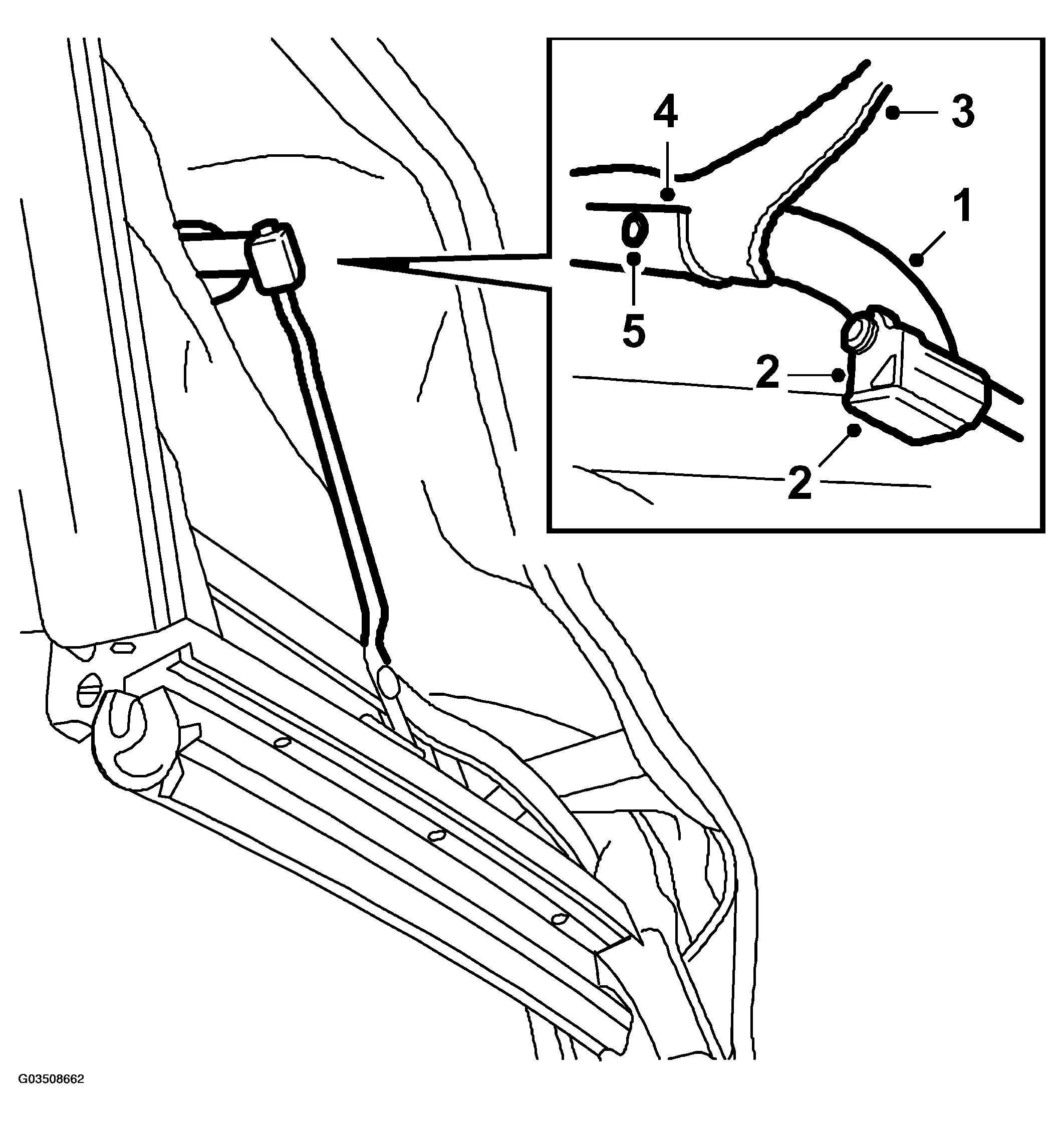

- Insert the second bow between the headlining and the outer roof.
- Press down the second bow on the guide pins and fit the stop lugs.
- Fit new double-backed tape on the second bow.
Fit the fabric that secures the outer roof. Fit it over and around the second bow. Fasten it to the double-backed tape and check that the fabric is lined up with the holes for the clips.
- Press on the plastic retainer with the headlining on the second bow.
- Press in the plastic clips.
