Fifth bow: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the fifth bow on the right side and fit the screws loosely.
  2. Insert the leads for the electrically heated rear window in the groove.
    IMPORTANT: Make sure that the cables are not pinched between the mounting and the fifth bow.
  3. Fasten the screws using the markings on the left side.
  4. Tighten the screws according to the markings on the right side.
  5. Fit the window guide and cable for the fourth bow.
  6. Fit the lock fittings. Adjust the lock fittings. See LOCK FITTINGS .

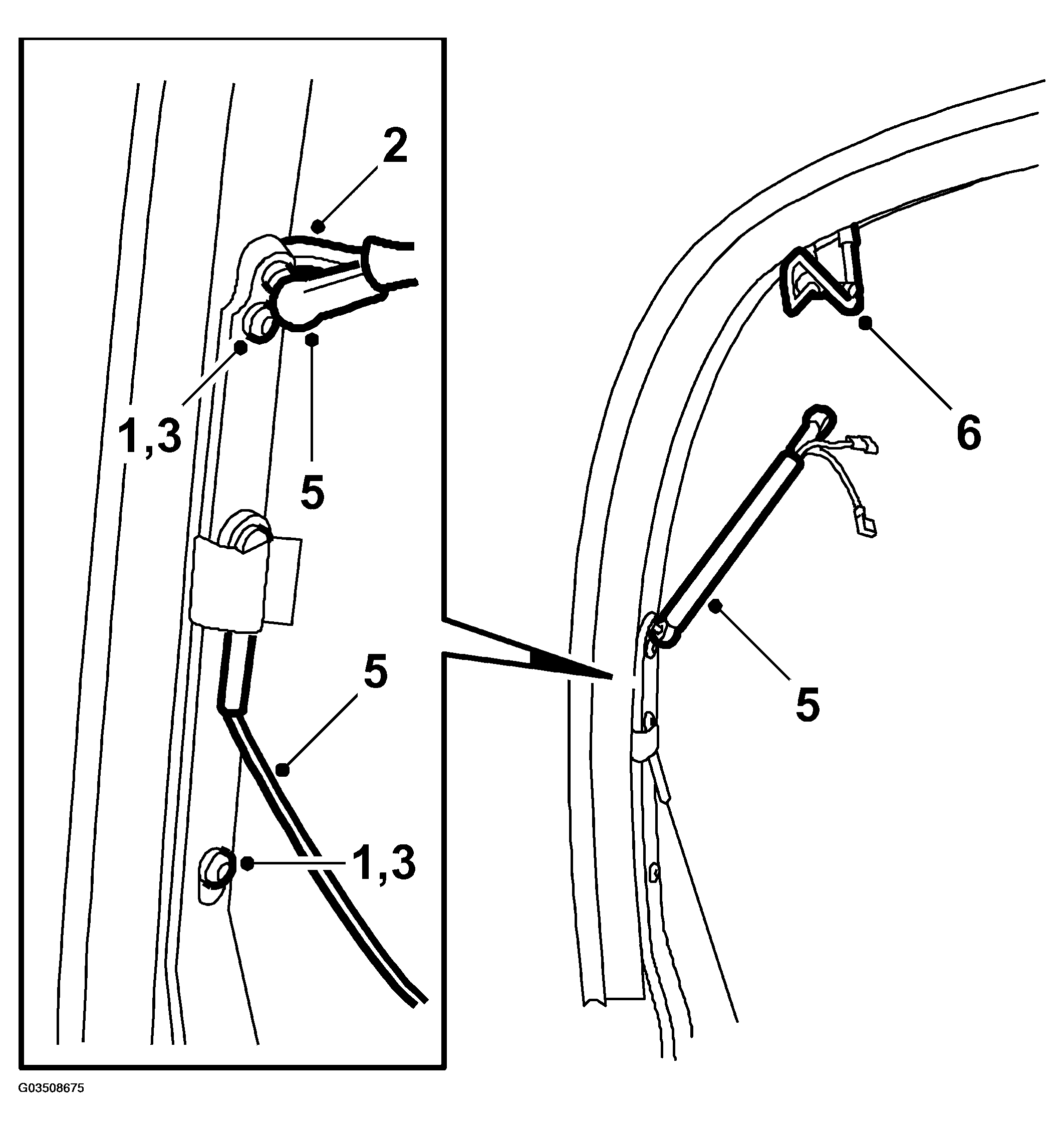

    7. Fig 1: Illustration For Steps 1-3, 5-6
    G03508675Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the soft top. see Outer roof , headlining and rear window
