C. Lock fittings

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

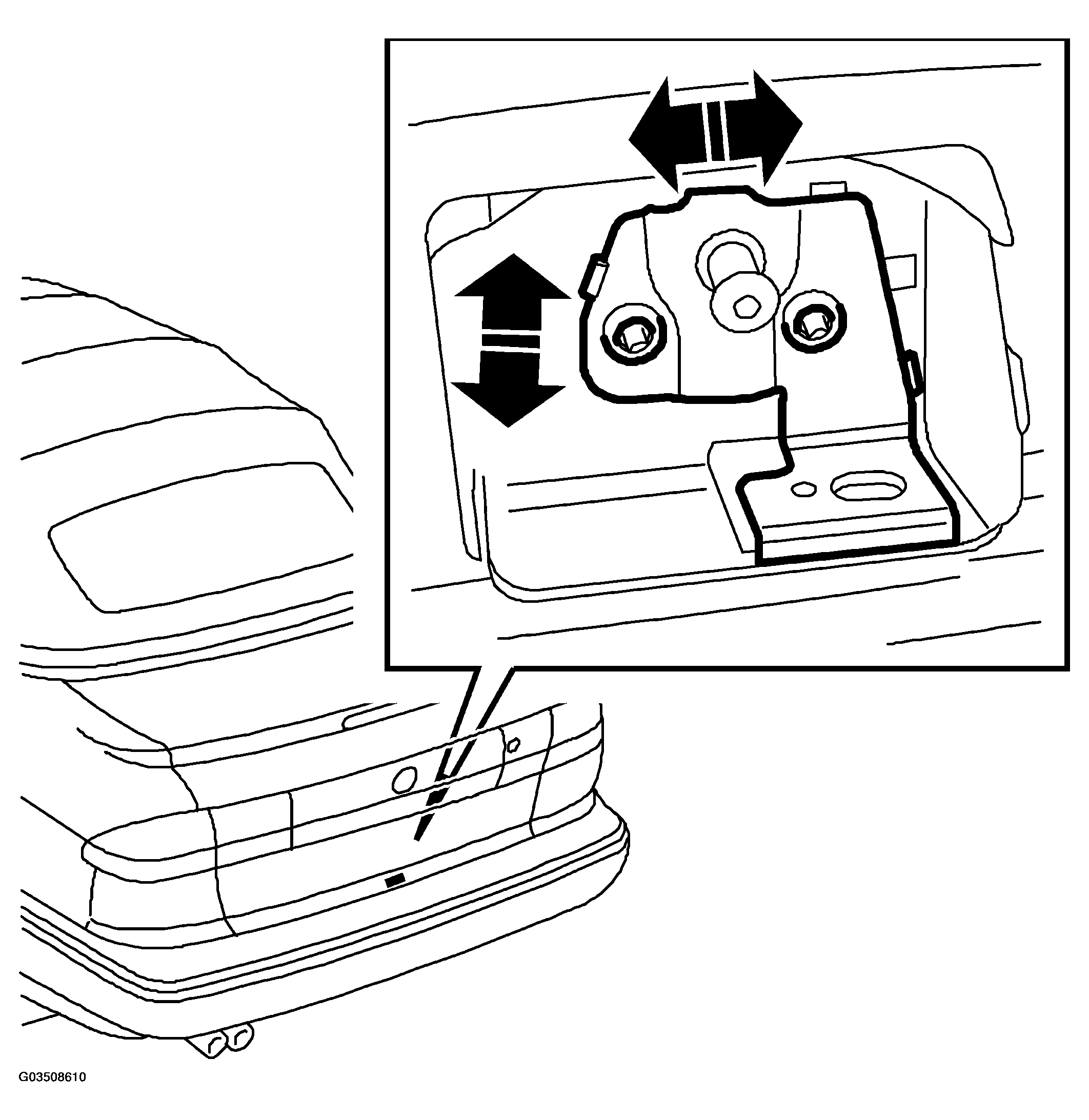

Fig 1: Loosening Lock Fitting Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Loosen the bolts that secure the lock fitting and adjust until good lock function is achieved.
