Emergency Seat Operation: Installation
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The bevel gear must be fitted when the seat is in place but before the bolts are tightened to torque.
- Dismantle the Protective Collar.

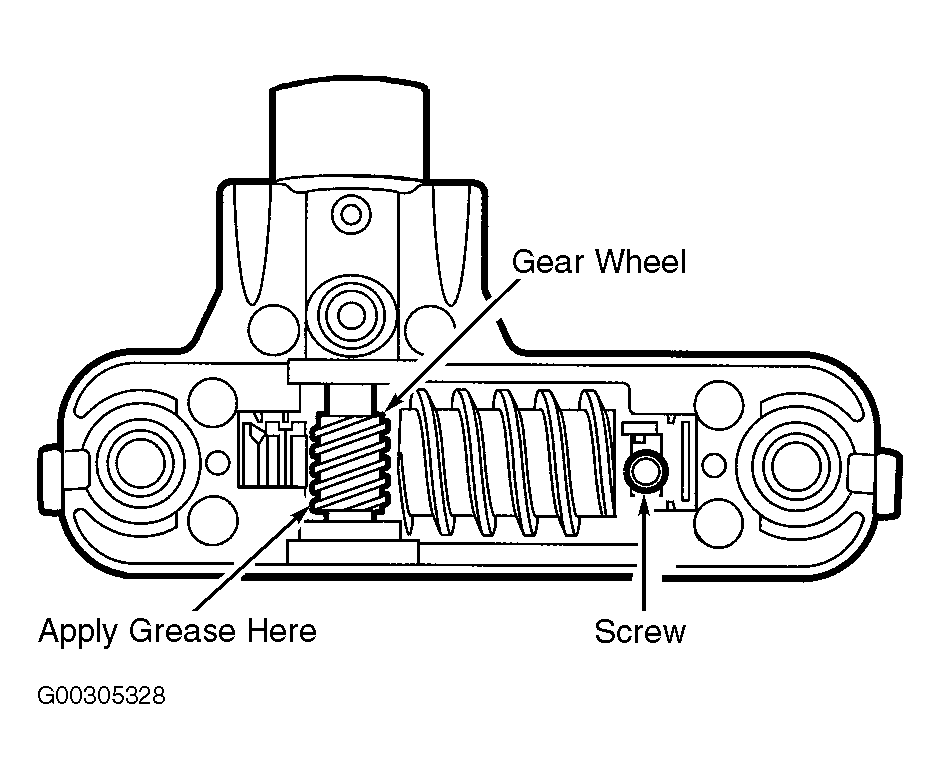

- Apply grease to the gear wheel and install the shaft into the gear housing, making sure the shaft lock is positioned correctly. See Fig 1 .
- Put the cover in place and tighten the screws. Make sure the spring is positioned correctly.
- Hold on to the seat shaft and press the gear in place.
- Screw the gear to the seat base.
- Install the front bolt in the lower seat panel. Install the lower seat panel.NOTE: Electrically adjustable seat: Install the protection on the front bolt.
- Continue to install the seat. See INSTALLATION under FRONT SEAT.
