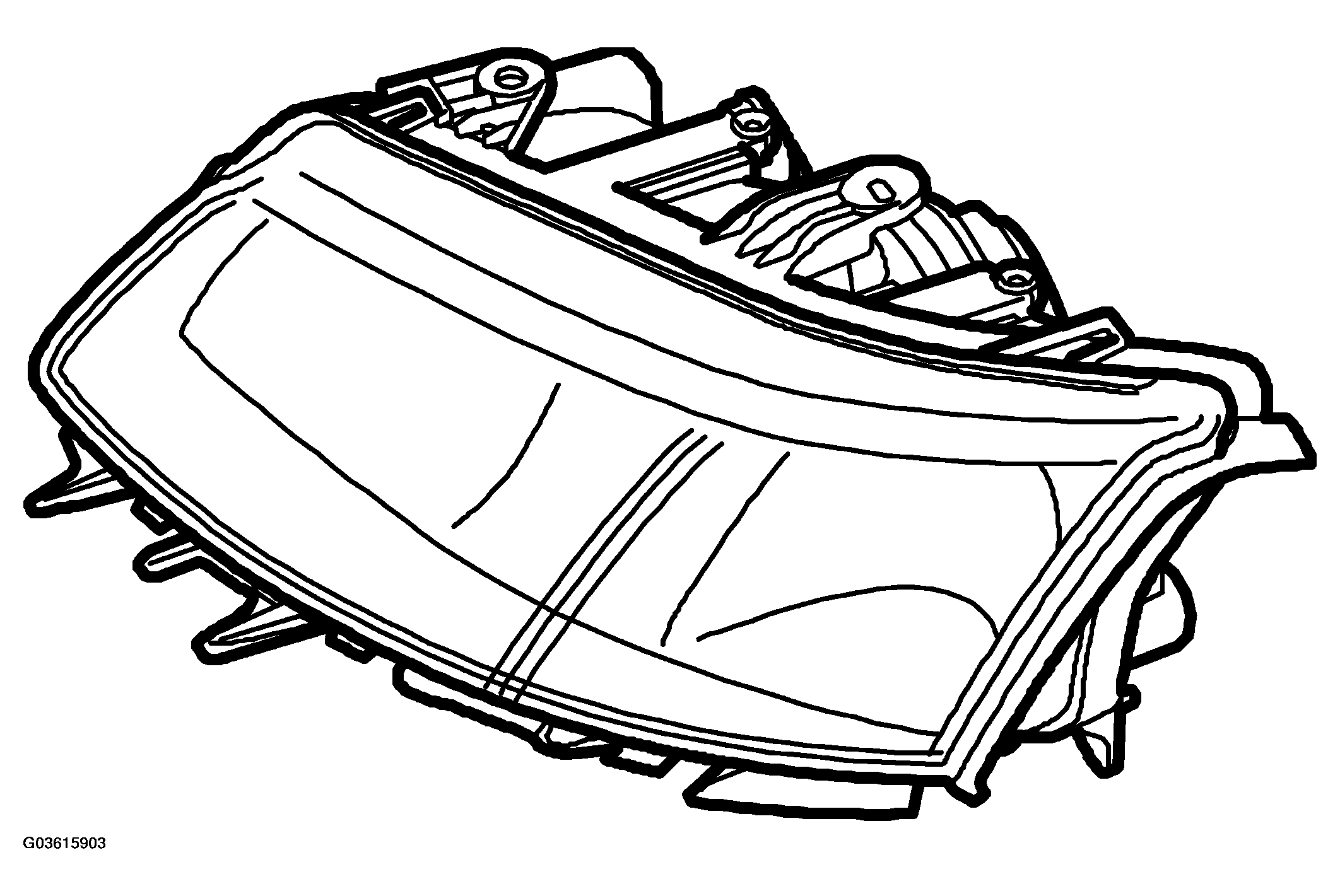

Headlamp unit, xenon (663FL/FR): Location
The headlamp is comprised of the following components:
- LEFT XENON HEADLAMP BULB (11AFL)
- RIGHT XENON HEADLAMP BULB (11AFR)
- LEFT-HAND MAIN BEAM BULB (11FL), (EU)
- RIGHT-HAND MAIN BEAM BULB (11FR), (EU)
- FRONT LEFT PARKING LIGHT (13FL)
- FRONT RIGHT PARKING LIGHT (13FL)
- FRONT LEFT DIRECTION INDICATOR (27FL)
- FRONT RIGHT DIRECTION INDICATOR (27FR)
- Left-hand headlamp levelling motor (280FL)
- Right-hand headlamp levelling motor (280FR)
- LEFT-HAND HEADLAMP FLASHER (661FL), (US/CA)
- RIGHT-HAND HEADLAMP FLASHER (661FR), (US/CA)
- IGNITION TRANSFORMER (663A)
- XENON LAMP BALLAST (663B)
- SOLENOID, MAIN BEAM DIMMING, LH (665FL)
- SOLENOID, MAIN BEAM DIMMING, RH (665FR)
