Headlamp unit, RH (663FR)

Location: by the right side of the radiator

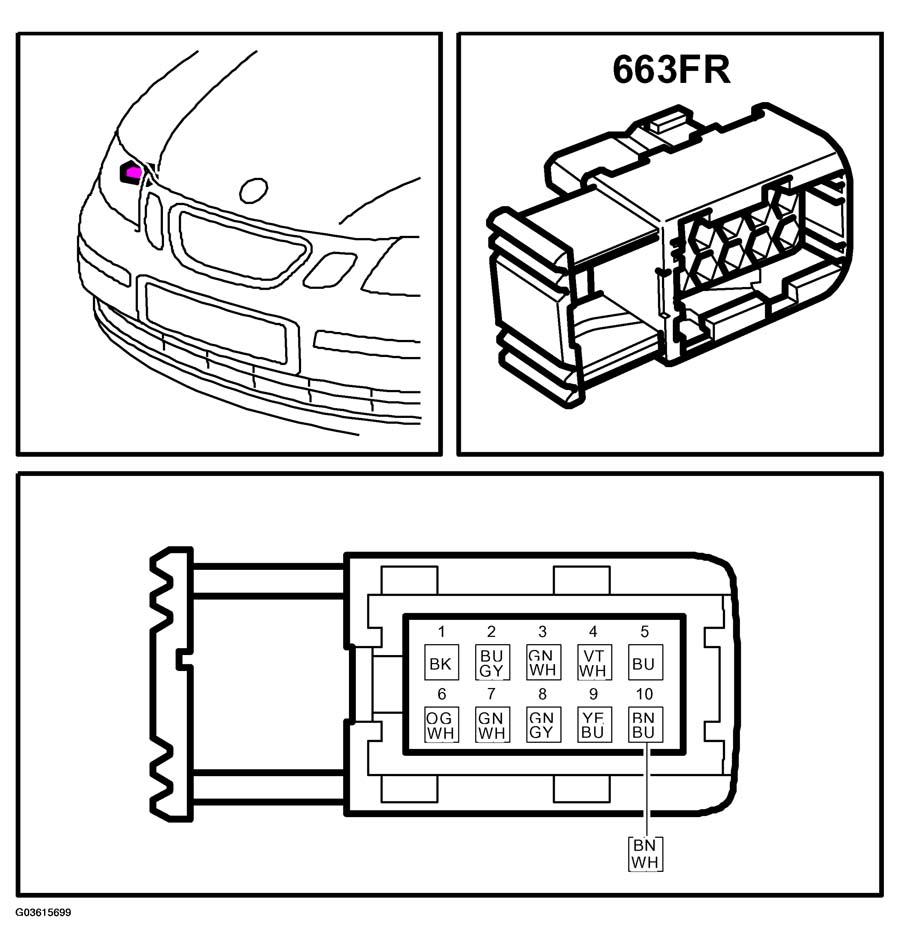

Fig 1: Identifying Headlamp Unit, RH (663FR) Connector

G03615699

Courtesy of SAAB-SCANIA OF AMERICA, INC.
